ACDELCO part description

Product Description

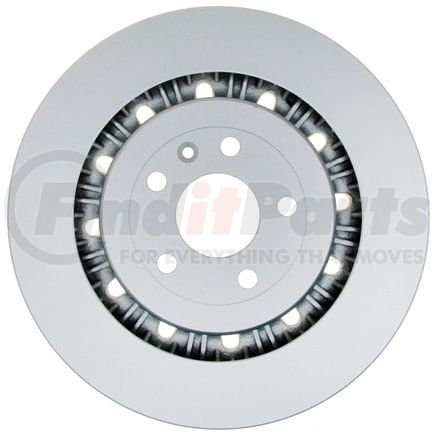

Front Brake Rotor

Product Attributes

Mount Hole Diameter (in) 0.63in
Mounting Bolt Hole Diameter 0.61 IN
Height (in) 1.85 in
Discard Thickness 1.181 IN
Bolt Circle Diameter (in) 4.5 in
Lug Quantity 5
Inside Diameter 9.476 IN
Outside Diameter 13.858 IN
Width (in) 14.09 in
Length (In) 14.85 IN
Weight 28.3 lb
Discard Thickness 30 MM
Nominal Thickness 32 MM
Height (mm) 46.99 mm
Bolt Circle Diameter (mm) 114.3 mm
Material Cast Iron
Mounting Bolt Hole Diameter 15.5 MM
Inside Diameter 240.7 MM
Product Description ACDelco Advantage Coated Disc Brake Rotors provide reliable vehicle braking power. Their robotic-applied, baked-on coating helps prevent brake pulsation, helps prevent the rotor from seizing to the hub, and provides superior rust prevention against harsh environmental elements such as rain, snow, and corrosive road sprays. They feature a non-directional ground finish that helps to extend brake pad life and minimizes thickness variation. They are also ready to be installed right out of the box, with no machining required. These dependable aftermarket Advantage Coated Disc Brake Rotors offer quality at an economical price. &#9888;<b> WARNING:</b> Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Disc Finish Coated
FAQ - Question 1 Does ACDelco offer other grades of brake rotors?
Features & Benefits - Bullet 1 Manufactured with multiple alloys for improved heat dissipation and performance
Features & Benefits - Bullet 2 Mill-balanced for proper rotor function; no extra weights needed
Programming Required No
Features & Benefits - Bullet 3 Quality validated for proper metallurgy and correct brake plate thickness
Features & Benefits - Bullet 4 Rounded radius for added strength
Signs of Wear & Troubleshooting - Section 1 - Bullet 4 Vehicle pulls to the left or right when brakes are applied.
Signs of Wear & Troubleshooting - Section 1 - Bullet 5 Visible ridges or deep grooves on the rotor surface.
FAQ - Answer 1 Yes, ACDelco also offers GM OE brake rotors and Professional brake rotors.
Mounting Bolt Hole Circle Diameter 4.5 IN
Mounting Bolt Hole Circle Diameter 114.3 MM
Center Hole Diameter 68.05 MM
Mounting Bolt Hole Quantity 5
Center Hole Diameter 2.68 IN
Outside Diameter 352 MM
Directional or Non-Directional Brake Surface Non-Directional
Overall Height 47 MM
Solid Or Vented Type Rotor Vented
Stud/Lug Hole Quantity 5
Surface Type Smooth
Conventional Or Drum-In-Hat Type Rotor Conventional
Nominal Thickness 1.26 IN
Overall Height 1.85 IN
ABS Tone Ring Included No

Additional Information

Warranty Special 12 Months/Unlimited Miles Warranty (Parts Only). Please see ACDelco.com for more details|24 Months/40,000 Kilometers (Parts Only). Please see ACDelcocanada.com for more details
Harmonized Tariff Code (HTS) 8708305030
Country of Origin (Primary) CN
Warranty Special UOM TX
UPC 00808709766650

A true OEM auto parts brand for GM and non-GM vehicles, ACDelco® offers a wide portfolio of parts designed to keep vehicles on the road longer. These parts work precisely and fit perfectly because they are designed, engineered, tested, and backed by General Motors. But ACDelco also carries aftermarket components that go through the same 18-step quality approval process as the OE parts. Whether customers choose OE or aftermarket, they’d get the same reliable performance, precise engineering, and superior reliability for years to come. ACDelco’s expansive product portfolio includes alternators, filters, batteries, brakes, belts and hoses, oil and fluids, and suspension parts. These products are made to meet GM and non-GM vehicles’ ever-evolving powertrain, collision, maintenance, and repair needs.
