(888) 312-8812 Login SignupBALDWIN RS3544 Engine Air Filter - Radial Seal Outer Air Element, For Use with RS3545
MSRP: $153.88
$5649
Save $97.39
Limited availability at this price!
In Stock
Get it by Thursday, Jul 23
BALDWIN RS3544 Part Description
Manufacturer
Product Description

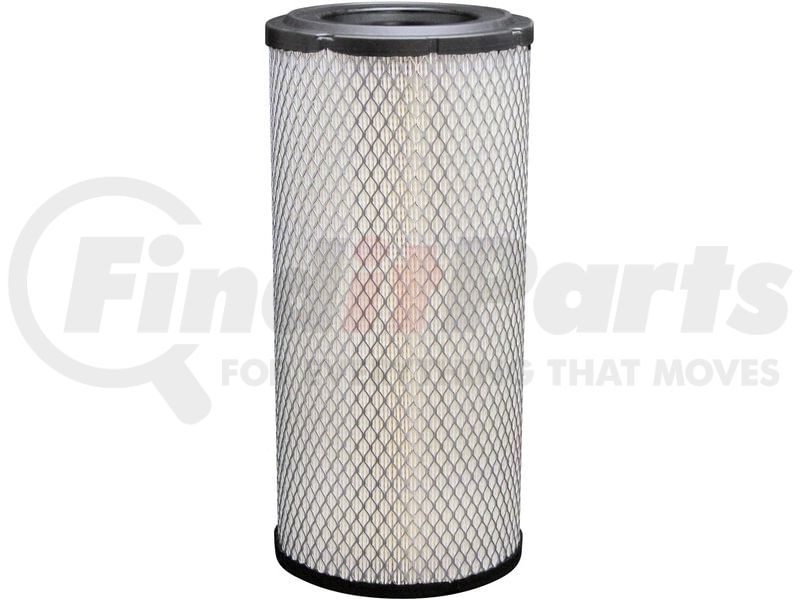

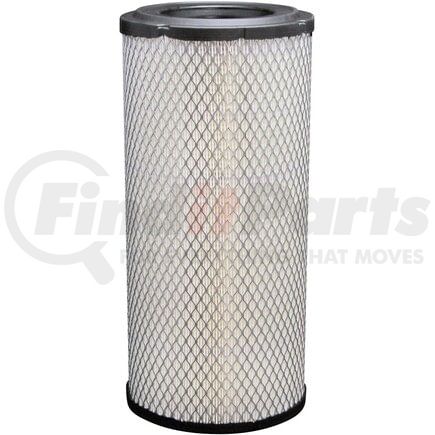

Radial Seal Outer Air Element
Application Summary
Cat, Gehl, JD, N-H, Vermeer, Volvo Equip
Features & Benefits
- Large pleated surface traps airborne debris like dust, soot, and pollen from intake flow
- Fits a wide range of commercial diesel engines and equipment used in various sectors
- Compatible with housings that require tight sealing around the perimeter of the element
- Helps preserve engine intake performance by filtering particles from air supply
Radial Seal Outer Air Element
Baldwin Radial Seal Air Filter
If you’re after consistent airflow protection, the Baldwin Radial Seal Air Filter gives your intake a reliable block against contaminants. This radial seal element fits in air filter housings that rely on axial pressure sealing. Additionally, it suits a range of off-road and highway engine applications and holds up during extended service intervals. For fleet managers or service techs looking for a high-quality option, the Baldwin RS3544 keeps the system protected and promotes even draw across the intake path.
| Type | Element |
BALDWIN RS3544 Specifications
Product Attributes
| Fits | Case, Caterpillar, Gehl, John Deere, New Holland, Vermeer, Volvo Equipment |
| Height | 14 1/32 |
| Height (mm) | 356.4 |
| Inside Diameter 1 | 3 9/16 |
| Inside Diameter 1 (mm) | 90.5 |
| Outside Diameter 1 (mm) | 165.1 |
| Outside Diameter 1 | 6.5 |
| Related to | {RS5517} (Flame Retardant Media Version);{RS3544XP} Extreme Performance Nano Version |
| Remark 2 | One End |
| Replaces | Case 222421A1; Caterpillar 110-6326; Gehl L99453; John Deere AT171853; New Holland 86982524 |
| Use With | {RS3545} |
| For Use With | RS3545 |
| Outside Diameter | 6 1/2 (165.1) |
| Product Style | Air Filter |
| Technology | Filtration |
| Inside Diameter | 3 9/16 (90.5) One End |
| Length | 14 1/32 (356.4) |
| Product Type | Radial Seal Outer Air Element |
| Application | Case, Caterpillar, Gehl, John Deere, New Holland, Vermeer, Volvo Equipment |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8421310000 |
| UPC | 00791440041257 |
BALDWIN RS3544 Cross References
| Brand | Part Number |
|---|---|
| AF25292, LAF4544, BALRS3544 | |
| ABAC | 9056189 |
| AGCO | 113855M1, 4270033M1 |
| AHLMANN | 4198305A, 4197839A |
| ALCO FILTERS | MD7398 |
| AMMANN | 48300880021, 545970026112, 45358520099 |
| ASAS | HF5013 |
| ASV | YM12395012560, YM11911712560, 12395012560, 11911712560 |
| ASV, INC. | 201510 |
| ATLAS COPCO | 5112305242, 1310033271 |
| ATLAS-WEYHAUSEN | 2981113 |
| AUSA | 460231100 |
| BALDWIN FILTERS | RS3544 |
| BIG A FILTER | 94562 |
| BOMAG | 5730100, 5730018 |
| BOSCH | 1457433332 |
| CARQUEST | 88562, 83993, 83491 |
| CASE | 222421A1, X2950576, KMH0781, 87718008, 87682993, 87682989, 87438248, 87418364, 84217229, 72957459, 6915571, 47137832, 47132345, 427471A1, 252640A1, 132000190706 |
| CATERPILLAR | 110-6326, 4677700, A000014214, 3453499, 3178522, 3109662, 2430406, 2334834, 2124478, 1129689, 1318902, 1106326, 1102556, 1318410 |
| CHAMPION LABORATORIES | LAF4544 |
| CLAAS | 13002800, 6000105759 |
| CLARCOR UK | E29036 |
| CLEAN FILTERS | MA1412A, MA1412 |
| COMLINE AUTO PARTS | EAF749 |
| COOPERS | AEM2668 |
| CROSLAND | 9783 |
| DEUTZ | 90013816, 90002042, 1022530 |
| DIAMOND PRODUCTS | 2501352 |
| DONALDSON | P828889, P812817, P782599, P772580, P770589, P535282, G082685, G082528, G082527, G082526, G082525, G082508, G082505, G082503, FPG082548, FPG082528, FPG082527, FPG082526, FPG082525, FPG082508, FPG082505, FPG082503, FPG080549 |
| DYNAPAC | 4700374771, 374771 |
| ENGINAIRE | 68330, 375FW, 375E1 |
| FAI (KOMATSU) | 848101144, 42R01H0P06 |
| FAMEL | FSR8096 |
| FG WILSON | 901048 |
| FIAAM | FLI6926 |
| FIAT | 99478393, 1849148, 1930589, 151849148 |
| FILTERMART | 284451, 224407 |
| FLEETGUARD | AF25292, AH19098, AH19097, AH19095, AF25557, AH19096, AF25352 |
| FLEETRITE | AHR819098, AHR819097, AHR819096, AHR819095, AFR825557, AFR825352, AFR825292 |
| FLOURISHED FILTER | FA131UP |
| FRAM | CA8737, CA8308 |
| FRAM EUROPE (SOGEFI) | CA5741 |
| GEHL | L99453, 99453 |
| GFF | AF346093PU |
| GONHER | GA853R |
| GPC | FC737 |
| GRADALL | 80273010 |
| GRAINGER | 2KXZ9 |
| GREYFRIARS | 1332A |
| GROVE | 9304100168 |
| GUD FILTERS | ADG1131R |
| GUR | A2580H |
| HANOMAG-HENSCHEL | 4918199M1 |
| HASTINGS | AF2270 |
| HENGST | E434L |
| HITACHI | Y407281, L4486002, 4486002 |
| HOKUETSU KOGYO | 3214312700 |
| HYSTER | S0076041 |
| HYUNDAI | 11FQ20250 |
| INDUCONTROL | AA1211 |
| INGERSOLL RAND | 93793025, 92793025, 59155119, 59106393, 89310700, 85400729, 85400727 |
| IVECO | 99478393, 8097619, 8041642, 8032064, 504064501, 500038750, 2997050, 2992677, 1903669, 151849148 |
| JACOBSEN | 5003370 |
| JCB (J.C. BAMFORD) | 32926097, 32915701, 32915700 |
| JIMCO | JAE88140 |
| JLG INDUSTRIES INC. | 80273010, 7021080 |
| JOHN DEERE | AT171853, RT7700039509, RT6005011111, RE62220, RE61094, RE222242, KV26882, KV16429, ER263097, AT199030, AT169911, AT262566 |
| JURA (HIFI) | SA16580 |
| KAWASAKI | 3098170410 |
| KELTEC | 200052 |
| KNECHT | LX1142 |
| KOBELCO | LP11P00004S002, LP02P000043 |
| KOMATSU | 848101144, 848101189, 6271817100, 6001852110, 6001852100, 42R01H0P06, 42N0211960, 3EC0242240, 2260211111, 2260211101, 20E01K1390 |
| KRALINATOR | LA1753 |
| KRAMER | 1000113383 |
| KUBOTA | 5970026112 |
| LIEBHERR | 7619404 |
| LUBER-FINER | LAF4544 , LAF4544 |
| LULL | P33180 |
| MACDON | 111060 |
| MACK | 5839AF25292 |
| MAHLE | LX1142 |
| MANN+HUMMEL | C173372, C17337 |
| MASSEY FERGUSON | VA263060, 6190627M1, 4270033M1, 3540051M1, 26510342 |
| MATBRO | 355451, 35545001 |
| MCCORMICK | MC222421A1 |
| MECAFILTER | FA3220 |
| MECALAC | 605A0026, 6050112 |
| MP FILTRI | MP8224, 8224 |
| MULTIQUIP | 602046582 |
| NAPA GOLD | 9993, 9491, 6562 |
| NELSON | 70956N |
| NEUSON | 1105601 |
| NEW HOLLAND | 86982524 , 87718008, 87682989, 87631623, 87442705, 87438249, 87418364, 86559431, 86555826, 84217229, 84036676, 82981152, 72957459, 6915571, 47137832, 47132343, 47128157, 252640A1, 1930589, 5150017, 151849148, 132000190706 |
| O&K ORENSTEIN & KOPPEL | 2271979 |
| OMNIQUIP PARTS WORLDWIDE | 8035098 |
| ONAN | 1403068 |
| PALATEK | 521082 |
| PERKINS | 901048, 2652C110, 26510342, 26510324, 23510342 |
| PHOENIX | NA3521 |
| PREMIUM GUARD | HA40249 |
| PURFLUX | A1082 |
| PUROLATOR | A65295 |
| RACOR | EAPE68330, EAF68170, EAF68160 |
| RADIALFIL | AP5589 |
| RENAULT | 7700061011, 6005011111 |
| SAKAI | 4419380031 |
| SAKURA | A7624S, A7623, A5541M, A5541S, A5541MS, A5541 |
| SAMBRON | 664482 |
| SAME | 90003010 |
| SANDVIK | 77007055 |
| SANY | B222100000500 |
| SF-FILTER / SCHUPP | SL8344 |
| STONE | 39622 |
| SULLAIR | 68561946, 2250125372, 2250122816 |
| SURE FILTER TECHNOLOGY | SFA8889SET, SFA8889P, SFA7725P |
| TAKEUCHI | Y11911712560, P847060, 12395012560, 11911712560, 10604003F, 10604003 |
| TBFIL | AR8889 |
| TCM | 2640237011 |
| TECFIL | ARS8889 |
| TECHNICAL FILTRATION | BSA25 |
| TECNECO FILTERS | AR2060 |
| THWAITES | T52566, T52556, T15834 |
| TORO | 1083815 |
| TORQUE PARTS | TR530-EF |
| TOYOTA | 177413051071 |
| UFI FILTERS | 2735600 |
| UNIFLUX | XA1737 |
| VAPORMATIC | VPD7107 |
| VERMEER | 220166005, 155030001 |
| VIRGIS FILTER | CH0814410 |
| VOLVO | VOE70918495, VOE70625009, VOE43931948, VOE43904200, VOE13255443, VOE16631880, VOE14543217, VOE11883618, 70918495, 70625009, 43931948, 43904200, 14543217, 16631880, 13255443, 11883618 |
| VOX | HD8889 |
| WEIDEMANN | 1000231399 |
| WIRTGEN | 2051604 |
| WIX | 549491, 546562, 49993, 49491, 46562 |
| WIX EUROPE | WA6462, 93326E |
| WIX FILTERS | WIX FILTERS, 46562, 46562NP |
| WIX FILTRON | AR285 |
| WOODGATE | WGA1080 |
BALDWIN RS3544 Customer Reviews
No reviews yet
Be the first to review this product!
BALDWIN RS3544 Manufacturer Information
Baldwin® is a world-renowned leader in the engine mobile filtration. A brand of Parker Engine Mobile Aftermarket Division (E.M.A.M.), Baldwin Filters provides high-quality filtration products and services for engines and mobile equipment. Since 1936, J.A. Baldwin, the founder of Baldwin Filtration, has recognized the importance of a highly efficient mobile filtration system. It is what inspired him to design an improved lube filter and set off its production in Wisconsin. Currently, Baldwin offers outstanding product quality, a vast distribution network, and one of the industry's most comprehensive product lines. Baldwin's broad range of filtration products and technologies provides customers with a one-stop source for all their engine and mobile filtration needs.
