(888) 312-8812 Login SignupBALDWIN PF46152 Diesel Fuel Filter Elements - For 2019-20 RAM 2500, 3500, 2019 4500, 5500 Trucks
MSRP: $196.23
$7249
Save $123.74
Limited availability at this price!
In Stock
Get it by Tuesday, Jun 23
BALDWIN PF46152 Part Description
Manufacturer
Product Description
Fuel Element
Application Summary
2019-20 RAM 2500, 3500, 2019 4500, 5500 Trucks
Features & Benefits
- End-cap bonding helps stabilize the element during sudden fuel surges
- Structural rigidity helps prevent twisting while inserting into canisters
- Smooth exterior coating resists swelling in temperature-shift environments
- Internal pleat count supports consistent flow during elevated demand cycles
- Retains shape despite prolonged fuel immersion periods
- Installation alignment is quick due to uniform cylindrical profile
- Handles pressure variation without developing channeling in the media
Fuel Element

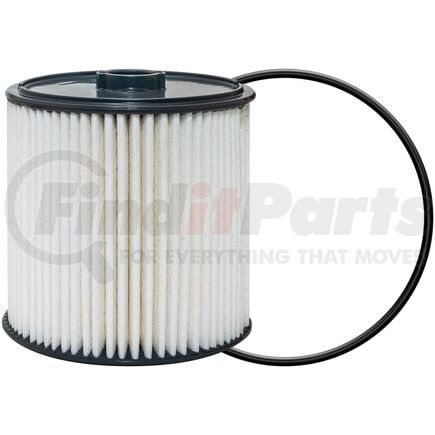

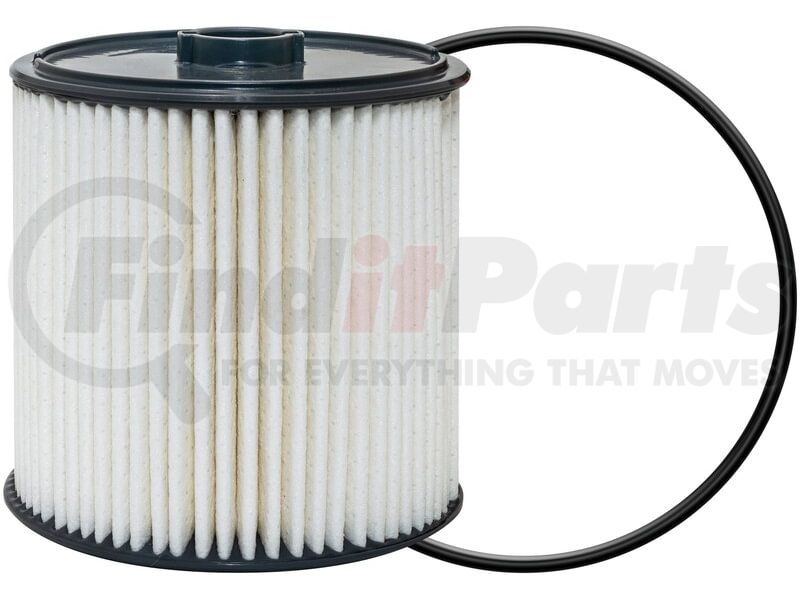

Baldwin Fuel Element
The Baldwin Fuel Element provides focused particulate removal in applications replacing Chrysler 68436631AA dimensions while supporting consistent filtration in systems that rely on stable fuel delivery. Its length of 4-7/32 inches allows proper seating inside housings designed for tightly controlled fuel-flow paths. The media construction captures contaminants without restricting demand flow in modern high-pressure systems, helping preserve injector accuracy during repeated cycling. The element’s outer structure helps maintain its form during temperature variation and fuel-pump pulsation. Installation remains straightforward thanks to its adherence to established filter-cavity geometry. Shop the Baldwin PF46152 today.
BALDWIN PF46152 Specifications
Product Attributes
| Fits | RAM 2500, 3500, 2019 4500, 5500 Trucks; 2021 Jeep Wrangler |
| Height (mm) | 107.2 |
| Height | 4 7/32 |
| Replaces | Chrysler 68436631AA |
| Remark 2 | & |
| Outside Diameter 1 (mm) | 102.4 |
| Outside Diameter 1 | 4 1/32 |
| O-Ring | [2] Attached, [1] Furnished |
| Inside Diameter 2 (mm) | 16.8 |
| Inside Diameter 2 | 21/32 |
| Inside Diameter 1 (mm) | 30.5 |
| Inside Diameter 1 | 1 3/16 |
| Application | 2019-20 RAM 2500, 3500, 2019 4500, 5500 Trucks |
| Division | Engine Mobile Aftermarket Division |
| Length | 4 7/32 (107.2) |
| Outside Diameter | 4 1/32 (102.4) |
| Product Style | Fuel Filter |
| Technology | Filtration |
| Inside Diameter | 1 3/16 (30.5) & 21/32 (16.8) |
| Product Type | Fuel/Water Separator Element |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8421310000 |
| UPC | 00791440116405 |
BALDWIN PF46152 Cross References
| Brand | Part Number |
|---|---|
| BALDWIN FILTERS | PF46152 |
| CARQUEST | 96878 |
| CHRYSLER | 68436631AA |
| GRAINGER | 56LG29 |
| GUR | GFI50505MB |
| PREMIUM GUARD | DF99569 |
| PUROLATOR | F51542 |
| WIX FILTERS | WF10579 |
BALDWIN PF46152 Fits Vehicles
- Jeep Gladiator (2022)
- Ram 1500 (2020-2022)
- Jeep Wrangler (2020-2023)
- Ram 3500 (2019-2024)
- Ram 2500 (2019-2024)
- Ram 5500 (2019-2022, 2024)
- Ram 4500 (2019-2024)
