Need help? We're here!

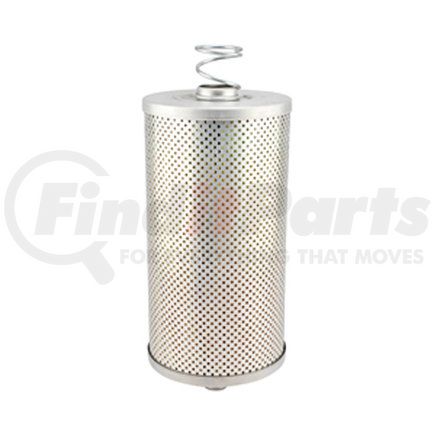

(888) 312-8812 Login SignupBALDWIN P996 Engine Oil Filter - Full-Flow Lube Element
MSRP: $101.28
$3999
Save $61.29
Limited availability at this price!
In Stock
Get it by Friday, Jul 3
BALDWIN P996 Part Description
BALDWIN P996 Specifications
Product Attributes
| Height | 12 5/32 |
| Spring | [1] Attached |
| Replaces | Nugent lube bag without a kit and without switching lines because of Baldwins two-way by-pass valve. |
| Remark 2 | & |
| Outside Diameter 1 (mm) | 128.6 |
| Outside Diameter 1 | 5 1/16 |
| Optional Gasket | {G164-A}, {G263} |
| Notes | If a conversion kit is already installed, or if originally equipped with element-type, use {P999}. |
| Inside Diameter 2 | 1.25 |
| Inside Diameter 2 (mm) | 31.8 |
| Contains | Two-Way 8 PSID By-Pass Valve |
| Attached Gasket | [1] Attached |
| Inside Diameter 1 | 16-Nov |
| Inside Diameter 1 (mm) | 17.5 |
| Height (mm) | 308.8 |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8421230000 |
| UPC | 00791440010963 |
BALDWIN P996 Cross References
| Brand | Part Number |
|---|---|
| BLDP996 | |
| ACDELCO | PF447, PF437, C463 |
| AMERICAN PARTS | 92903, 851, 723, 721 |
| AP LOCKHEED | FH222, 574222 |
| AUTOCAR | 878536 |
| BALDWIN FILTERS | P996 |
| BIG A FILTER | 92903, 92900, 721 |
| BROCKWAY | S1953 |
| CARQUEST | 85903, 85900 |
| CASE | 244247R1 |
| CHAMPION LABORATORIES | P900, L3201C, 3201C |
| CLARK EQUIPMENT | S1953, 945351 |
| CO-OP | PMBC10F, BAG1116 |
| COLES | 8777117, 741061 |
| CORBITT | S1953 |
| CROSLAND | 265, 264 |
| CUMMINS | CL502, S2119, S1956, S1953, FL553C, FL553, FL502, FF7, BM72353, BM72343, 256843, 250924, 134655 |
| CYCLONE | PMBC10F |
| DART TRUCKS | S1953 |
| DAVID BROWN TRACTORS | S1953 |
| DELUXE | FC161, 231, 161 |
| DIAMOND | S1953, 878536 |
| DIAMOND REO | 878536, S1953 |
| DIEXA | DX614741 |
| DONALDSON | P779001, P552377 |
| EUCLID | S1953, 9043928, 9025023, 43928, 125621 |
| FILGA | FF1953 |
| FILT | TS5000 |
| FLEETGUARD | LF502 |
| FLEETRITE | LFR8502 |
| FLO-LINE | Q1953BAG |
| FORD MOTOR | C6RZ6731A, C5RZ673UA, C5RZ6731A |
| FRAM | CH7508, C118, C116 |
| FWD CORP. | S1953, 202251 |
| GM GENERAL MOTORS | 6437991, 6437987, 6437344, 6436696, 5575005, 5574989 |
| GONHER | G116 |
| GOULD | BC10F |
| GRAINGER | 4ZRF9, 4CTW6 |
| HASTINGS | P996, LF419, LF394 |
| HASTINGS OLD NUMBER | LF394 |
| IHC INTERNATIONAL HARVESTER | 244247R91, 244247R1 |
| KENWORTH | S1953, KW502 |
| KOMATSU | 6684514410 |
| KRALINATOR | K899 |
| L.B. FILTER | LF502 |
| LETOURNEAU | H8095, SF578 |
| LUBER-FINER | P1670, LP900, LP1670, 3201HC, 3201C |
| MACK | S1953 |
| MICRO PORE | LU1953 |
| MOBIL 1 | MC614741 |
| MOPAR | L66, L50 |
| MOTORCRAFT | FL217, FL166, FL116 |
| NAPA GOLD | 1903, 1900 |
| NELSON-WINSLOW | HBAG, 50666A |
| NUGENT | 30173002, 1116GF2R, 1116GF1R, 11161R |
| P&H PAWLING & HARNISCHFEGER | 1046Z28 |
| PERRY | PL231, PL161 |
| PUROLATOR | P146, HBBAG, ABAG, 6147433, 614741 |
| REFILCO | 1116GF1R |
| REO | 878536 |
| ROL-PAK | N1RBCF |
| RYCO | R421, R2036 |
| SAVARA | 92409817, 92409617 |
| SF-FILTER / SCHUPP | SO1292 |
| STAY READY | SRP1953BAG |
| STERLING | S1953 |
| UNITED ENGINE LIFE | N1953F8, N1953F6, N1953F |
| WABCO | SF578, H8095 |
| WESTERN TOOL CO. | C10BAG |
| WGB | S1953BL, S1953B |
| WHITE | S1953, 878536 |
| WINSLOW | HBAG |
| WIX | CW953MP, CW900MP, BAGHBF, 51903, 51900 |
| WIX FILTERS | 51900 |
| WOODGATE | WGL502 |
| WORTHINGTON | S1953 |
BALDWIN P996 Fits Vehicles
- Mack WL (1982-1983)
- Mack RWS (1981-1985)
- Mack RWL (1981-1985)
- Kenworth K100E (1985-2002)
- Kenworth K100 (1981-1985)
- Peterbilt 282 (1965-1980)
BALDWIN P996 Customer Reviews
No reviews yet
Be the first to review this product!
BALDWIN P996 Manufacturer Information
Baldwin® is a world-renowned leader in the engine mobile filtration. A brand of Parker Engine Mobile Aftermarket Division (E.M.A.M.), Baldwin Filters provides high-quality filtration products and services for engines and mobile equipment. Since 1936, J.A. Baldwin, the founder of Baldwin Filtration, has recognized the importance of a highly efficient mobile filtration system. It is what inspired him to design an improved lube filter and set off its production in Wisconsin. Currently, Baldwin offers outstanding product quality, a vast distribution network, and one of the industry's most comprehensive product lines. Baldwin's broad range of filtration products and technologies provides customers with a one-stop source for all their engine and mobile filtration needs.
BALDWIN P996 Questions & Answers
No questions yet
Be the first to ask a question about this product!
