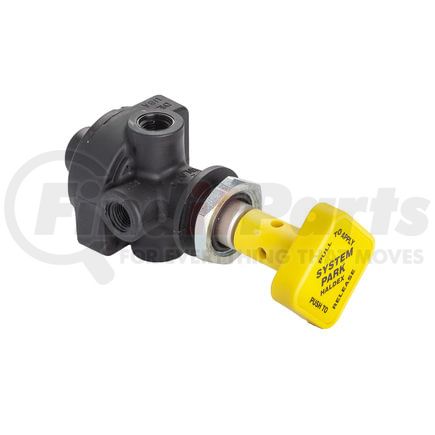

(888) 312-8812 Login SignupHALDEX KN20021 Air Brake Control Valve - Hand Operated, Push-Pull Parking/Emergency Brake
SHIPS MONDAY
$5499
Limited availability at this price!
In Stock
Get it by Friday, Dec 26
HALDEX KN20021 Part Description
Manufacturer
Product Description
Push-Pull Parking/Emergency Brake Valve
Application Summary
Parking/Emergency Brake Valve
Features & Benefits
- A highly reliable push-pull parking/emergency brake valve
- Designed with bulkhead mount, requiring a ?” mounting hole
- Made of Engineering Grade Composite (EGC) that is proven tough, light, and corrosion resistant
- Can be used to replace the PP-1
- Knob, pin, and mounting nut are shipped with the unassembled valve
Haldex Hand Operated Valve
The Haldex hand operated valve enables the user to manually reduce incoming pressure to the desired output pressure. Manufactured by a brand with over 100 years of engineering expertise, this hand control valve delivers superior performance, reliability, and efficiency.
HALDEX KN20021 Specifications
Product Attributes
| Freight Class | 70 |
| Pop Pressure | 35± 10 PSI |
| Port Thread Diameter | 1/8 in. |
| All Ports | 1/8" NPT |
| Approximate Weight | .4 lbs. |
| Notes | System Brake |
| OEM Part Number | N20960 |
| Knob Included | KN20903 |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8481200070 |
| Harmonized Tariff Code (HTS) | 8481200070 |
| Remanufactured Part | N |
| Warranty Distance | 100000 |
| Warranty Distance UOM | MI |
| Warranty Special | 36 MO, 350,000 MI=Haldex Air Brake Valves(1), Automatic Drain Valves (410-10XXX Series)(1). 12 MO, 100,000 MI= Automatic Drain Valves (N20878/ N20879 Series), Height Control Valve, Scale-O-Matic and AC Boxes. See L20221W.pdf for warranty details |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| UPC | 00767653009902 |
| VMRS Code | 013010049 |
HALDEX KN20021 Part Interchanges
| Brand | Part Number |
|---|---|
| N/A | E-BN276567X, 12403, 0209-MM5-005, 101279, 9366490010, EM-35920, 1180500, 3V8313, 15572831, E0HT2A622AA, 479301440A, 2HB911, 1676738C1, 53001202, 1567197, 78201-0001, 14309681, 641128, 16799, 30020, 3006359, S-5675, 2370, 1576016, 112229, 12406N, AV20021, 401036 |
| Euclid | E-BN276567X, E-BN276635X, E-BN281587X, E-BN287417X |
| Midland | 12403, 12403X, 12406, 12406N, 12406X, 276567X, 276569X, 282499X, 284726X, KN20021, KSV4040732, N20960, VN20960 |
| Spartan | 0209-MM5-005 |
| Bendix | 101279, 101395, 101478, 101850, 102232, 104444, 104492, 104591, 104992, 108073, 109123, 109999, 275170, 275175, 275176, 275782, 275791, 275796, 276264, 276562, 276566, 276567, 276569, 276570, 276571, 276572, 276574, 276575, 276576, 276577, 276578, 276580, 276581, 276582, 276587, 276781, 276804, 277015, 277072, 277090, 277091, 277556, 277557, 277638, 277663, 277717, 277718, 277998, 277999, 279144, 279269, 279429, 279469, 279478, 279761, 280311, 280710, 280995, 282347, 282499, 282500, 282510, 282574, 284060, 284171, 284357, 284726, 284728, 284785, 284923, 285628, 285629, 285819, 286089, 287054, 287257, 287325, 287379, 287417, 287566, 287600, 288005, 288577, 288773, 289034, 289543, 289607, 289799, 289862, 289954, 299364 |
| Meritor | 9366490010, 9366490090, RKN20021 |
| PAI | EM-35920, EM-36190, EM-56150, EM-56180, EM-56270, EM-56420, LPP-3592 |
| Bepco | 12403 |
| Berg Manufacturing | 1180500, 12403, 12407 |
| Caterpillar | 3V8313 |
| GMC | 15572831 |
| Ford | E0HT2A622AA, E0HT2A622EA |
| Hino | 479301440A |
| Oshkosh | 2HB911 |
| Navistar | 1676738C1, 1681042C91, 1681044C91, 385975C91, 502699C1, 619502C92 |
| Ottawa | 53001202, 53100576, 90007281 |
| Terex | 1567197, 660073 |
| Western Star | 78201-0001, 78210-0001, 78212-0001 |
| Mack | 101279, 101395, 20QE1284, 20QE3113, 5396-KN20021 |
| Freightliner | 14309681 |
| Prevost | 641128 |
| Advance Mixer | 16799 |
| Di-Pro Inc. | 30020, 30021 |
| Ryder | 3006359, U55 KN20021 |
| S&S Truck Parts | S-5675 |
| Silver Eagle Mfg | 2370 |
| Volvo GM Heavy Truck | 1576016, 27116875, 3082753, 78210-0013, V1113098, V1114042, V1576016 |
| Williams Controls | 112229, WM325, WM762 |
| NAPA | 12406N, 66505 |
| OTR | AV20021 |
| Tramec Sloan | 401036, 401082, 401134 |
| EUCLID | E-BN276567X, E-BN276635X, E-BN281587X, E-BN287417X |
| MIDLAND | 12403, 12403X, 12406, 12406N, 12406X, 276567X, 276569X, 282499X, 284726X, KN20021, KSV4040732, N20960, VN20960 |
| SPARTAN | 0209-MM5-005 |
| BENDIX | 101279, 101395, 101478, 101850, 102232, 104444, 104492, 104591, 104992, 108073, 109123, 109999, 275170, 275175, 275176, 275782, 275791, 275796, 276264, 276562, 276566, 276567, 276569, 276570, 276571, 276572, 276574, 276575, 276576, 276577, 276578, 276580, 276581, 276582, 276587, 276781, 276804, 277015, 277072, 277090, 277091, 277556, 277557, 277638, 277663, 277717, 277718, 277998, 277999, 279144, 279269, 279429, 279469, 279478, 279761, 280311, 280710, 280995, 282347, 282499, 282500, 282510, 282574, 284060, 284171, 284357, 284726, 284728, 284785, 284923, 285628, 285629, 285819, 286089, 287054, 287257, 287325, 287379, 287417, 287566, 287600, 288005, 288577, 288773, 289034, 289543, 289607, 289799, 289862, 289954, 299364 |
| MERITOR | 9366490010, 9366490090, RKN20021 |
| BERG | 1180500, 12403, 12407 |
| FORD | E0HT2A622AA, E0HT2A622EA |
| HINO | 479301440A |
| NAVISTAR | 1676738C1, 1681042C91, 1681044C91, 385975C91, 502699C1, 619502C92 |
| FREIGHTLINER | 14309681 |
| PREVOST | 641128 |
| ADVANCE MIXER | 16799 |
| DI-PRO | 30020, 30021 |
| RYDER FLEET PROD. | 3006359, U55 KN20021 |
| Silver Eagel Mfg | 2370 |
| WILLIAMS CONTROLS | 112229, WM325, WM762 |
| MACK | 101279, 20QE1284, 20QE3113 |
| WESTERN STAR | 78201-0001, 78210-0001, 78212-0001 |
HALDEX KN20021 Cross References
We have 25 alternatives for the KN20021 by HALDEX:
- 013-010-049
- MIDKN20021
- TECTRAN 14028
- MERITOR R955276566N
- MERITOR R955276567N
- WABCO RKN20021
- WABCO S9366491140
- WABCO S9366491500
- WABCO S9410322620
- AUTOMANN 170.276567
- BENDIX 275175
- BENDIX 275176
- BENDIX 276567
- BENDIX 287054
- BENDIX 287054X
- EUCLID EBN276567N
- FORD E0HT2A622EA
- FORD EOHT2A622EA
- HALDEX KN20021
- INTERNATIONAL 385975C91
- MACK 20QE3113
- MACK 20QE3179
- MACK 25117989
- MIDLAND KN20021
- VELVAC 034013
HALDEX KN20021 Customer Reviews
No reviews yet
Be the first to review this product!
HALDEX KN20021 Manufacturer Information
Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.
