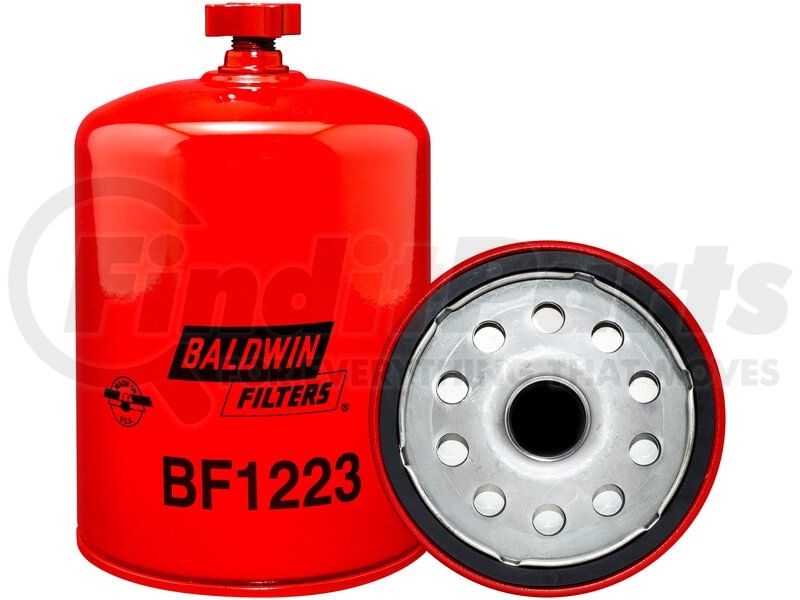

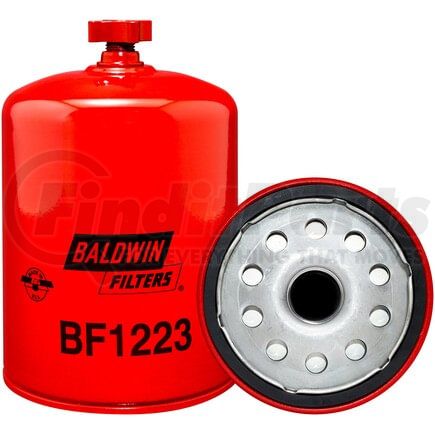

(888) 312-8812 Login SignupBALDWIN BF1223 Fuel Water Separator Filter - used for Various Truck Applications
MSRP: $63.07
$4699
Save $16.08
Limited availability at this price!
In Stock
Get it by Tuesday, Jun 16
BALDWIN BF1223 Part Description
Manufacturer
Product Description
Fuel/Water Separator Spin-on with Drain
Application Summary
Carrier-Transicold Refrigeration Units
Features & Benefits
- Strips free and emulsified moisture using specialized 10-micron HydroChassis™ filtration media
- Protects high-pressure injectors and fuel pumps from the abrasive wear caused by water contamination
- Utilizes a self-venting drain valve for rapid removal of captured water during inspections
- Resists pressure spikes and casing distortion with a heavy-duty, all-metal spin-on housing
- Fits a wide variety of secondary fuel circuits found on Ford, Hino, and Carrier-Transicold units
- Maintains high flow rates while stripping particulate debris that can clog secondary filters
Fuel/Water Separator Spin-on with Drain
Baldwin Fuel Water Separator Filter
The Baldwin Fuel Water Separator Filter is a primary-stage fuel water separator engineered with HydroChassis™ filtration media to achieve a 10-micron absolute rating. This spin-on filter is designed to remove both free and emulsified water from the diesel fuel stream before it enters the high-pressure injection circuit. The Baldwin BF1223 assembly features a heavy-gauge steel housing and an integrated, self-venting bottom drain for manual water removal. It is compatible with a wide variety of secondary fuel systems, specifically those utilized in Ford medium-duty trucks, Hino chassis, and Carrier-Transicold refrigeration units.
BALDWIN BF1223 Specifications
Product Attributes
| Per Inch | 14 |
| Replaces | Carrier 30-01079; Ford F1HZ-9365-A |
| Outside Diameter 1 (mm) | 108 |
| Outside Diameter 1 | 4.25 |
| Height (mm) | 172.2 |
| Height | 6.78125 |
| Fits | Carrier-Transicold, Ford, Hino Trucks; Ingersoll-Rand Compressors |
| Contains | Integral Post Seal |
| Attached Gasket | [1] Included |
| Thread | 1 |
| Related to | {BF1223-O} (Open Port Version);{BF1223-SP} (Sensor Port Version);{BF1224} (Fuel Version) |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8421230000 |
| UPC | 00791440011595 |
BALDWIN BF1223 Cross References
| Brand | Part Number |
|---|---|
| BALBF1223, BLDBF1223 | |
| ACDELCO | TP1285 |
| ALCO FILTERS | SP1431 |
| ALLIANCE | ABPN10GFF5301 |
| BALDWIN FILTERS | BF1223 |
| BIG A FILTER | 95411, 95404, 95231 |
| BOMBARDIER | 921144764 |
| BUHLER VERSATILE | 86029160 |
| CAPACITY | 111898 |
| CARQUEST | 86411 |
| CARRIER | 30-01079 |
| CARRIER-TRANSICOLD | 300109900, 3001099, 300109005, 300109004, 300109000, 3001090, 300107900, 3001079 |
| CASE | 87803210, 87802929 |
| CHAMPION LABORATORIES | LFF8063, LFF5766, LFF1225, LFF1224, LFF1223 |
| DONALDSON | P559125, P551852, P551056, P550730, P550548, P550455, FFP551852 |
| FLEETGUARD | FS19687, FF5301, FS19931 |
| FLEETRITE | FFR85301 |
| FORD | F1HZ-9365-A |
| FORD MOTOR | F1HZ9365A, F08N9176AA, 87840136, 6933130 |
| FRAM | PS7171, PS8187 |
| GONHER | GPP1287, GP1224 |
| GRAINGER | 2KYJ8 |
| GREYFRIARS | 857S |
| HASTINGS | FF1040 |
| HASTINGS OLD NUMBER | FF875 |
| HENGST | H7060WK10 |
| HINO | S234011440, 234021440, 234011630, 234011440L, 234011440A, 234011440 |
| IHC INTERNATIONAL HARVESTER | 1685359C91 |
| IVECO | 87840136, 7146717 |
| JCB (J.C. BAMFORD) | 32925218 |
| JURA (HIFI) | SN906010 |
| KRALINATOR | FS239R, FS239 |
| LUBER-FINER | LFF8063, LFF1225, LFF5766, LFF1224, LFF1223 |
| MACK | 5839FF5301, 3076PS8187, 3076PS7171 |
| MAHLE | KC379D, 70385369, 70385367, 70385362, 70385361 |
| MANN+HUMMEL | WK11421X |
| MOTORCRAFT | FD3368 |
| NAPA GOLD | 3411, 3404, 3231 |
| NEW HOLLAND | 87840136, 87803210, 87802929, 6933130 |
| PUROLATOR | F65041, 6938309 |
| RACOR | R60T, R44, PFF3368, PFF831 |
| SAKURA | SFC1904, SFC190102, SFC130630, SFC130610, SFC130602 |
| SURE FILTER TECHNOLOGY | SFR2240FW, SFF1440 |
| VERSATILE | 86029160 |
| WIX | 533404, 33411, 33404, 33231 |
| WIX FILTERS | 33411, 33231 |
| WOODGATE | WGFS1223 |
BALDWIN BF1223 Fits Vehicles
- Peterbilt 387 (2002)
- International 4100 SBA (2006-2008)
- Peterbilt 378 (1993, 1999-2000, 2002)
- Peterbilt 270 (2001-2002)
- Peterbilt 379 (1999-2002)
- Peterbilt 357 (2000-2001)
- International 4200LP (2003-2008)
- International 4200 (2002-2010)
- International 4100 (2006-2012)
- Ford F-600 LPO (1990-1994)
- Hino SG3320 (1998-2001)
- Hino SG3325 (1998-2004)
- Hino FF3020 (1998-2002, 2004)
- Hino FE2620 (1998-2004)
- Hino FD2320 (2004)
- Hino FA1517 (1998-2004)
- Hino FB1817 (1998-2004)
- Hino FD2220 (1998-2002)
- Hino 338CT (2008-2014)
- Ford F-800 (1986-1993)
- Ford CF8000 (1991-1994)
- Ford B-600 (1987-1993)
- Ford B-700 (1987-1993)
- Ford LN8000 (1991-1993)
- Ford LN7000 (1987-1993)
- Ford F-700 (1991-1993)
- Ford F-600 (1980-1994)
- Ford CF7000 (1986-1993)
- Ford CF6000 (1986-1990)
- Hino 338 (2005-2014)
