Name: Haldex 41210029 Air Brake Dryer - 24V / 12V, 0.5 AMP/ 1 AMP, Vertical Mounting, 1.3cc/purge @ 116 PSI
SKU: 41210029
Price: 135.49 USD
Availability: InStock

HALDEX part description

Product Description

Consep™ Condenser/Separator, 24V

Features & Benefits

Designed to effectively filter oil, liquid, and other contaminants prior to passage through the air system
Made to purge contaminants with each brake application
Corrosion-resistant and helps prevent premature air system components failure
Improves the service life of the air dryer desiccant
Comes with a Haldex automatic drain valve

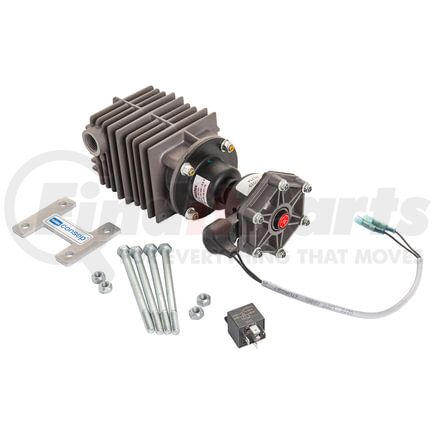

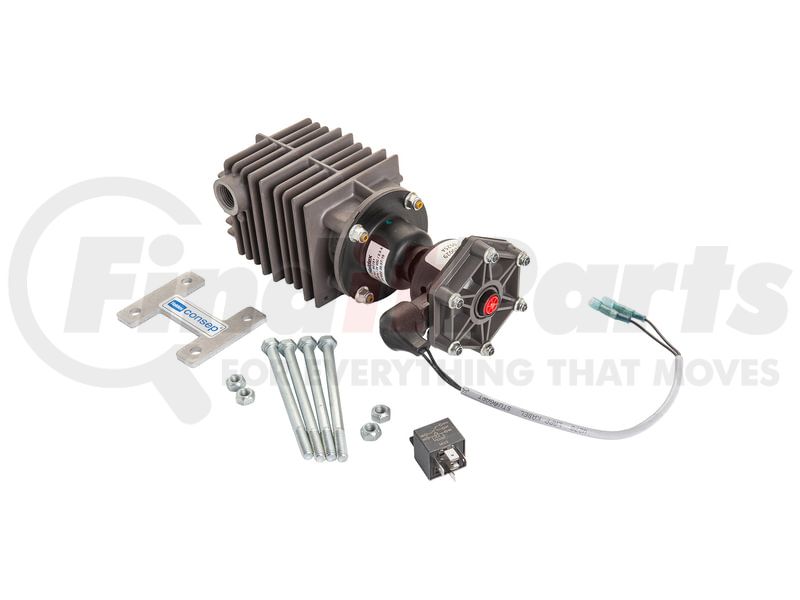

Haldex Consep™ Condenser/Separator

Make sure only clean air goes through the air system with the Haldex Consep™ condenser/separator. Manufactured by a brand with over 100 years of engineering expertise, this product is designed to offer maximum efficiency and performance at a competitive price.

Product Attributes

Amperage Rating	0.5 AMP/ 1 AMP
Drain Capacity	1.3cc/purge @ 116 PSI
Freight Class	70
Maximum Operating Pressure	290 PSI
Maximum Working Temperature	175°F
Minimum Working Temperature	-40°F
Mounting Position	Vertical
Port Diameter	1/2 in. - 14 NPTF
Voltage	24V / 12V
Width	4.4 in.

Additional Information

Country of Origin (Primary)	IN
Harmonized Tariff Code (Schedule B)	8421398015
Harmonized Tariff Code (HTS)	8421398015
Remanufactured Part	N
Warranty Distance	100000
Warranty Distance UOM	MI
Warranty Special	See Haldex Aftermarket Product warranty Policy (L20221W).pdf
Warranty Time	12
Warranty Time UOM	MO
UPC	00767653196992
VMRS Code	013010252

Part Interchanges
