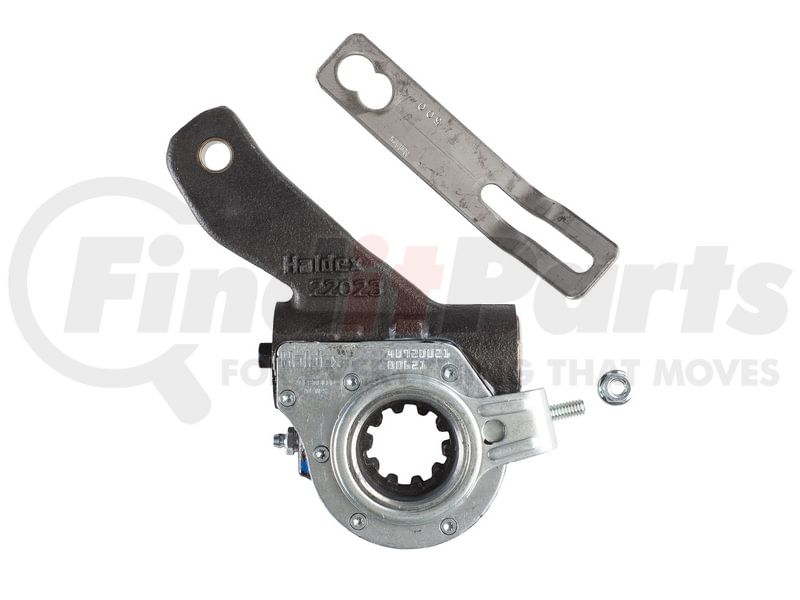

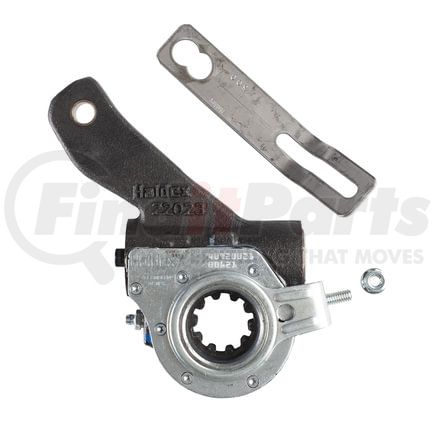

Name: Haldex 40020233 Air Brake Automatic Slack Adjuster - Rear, 6" Arm Length, 1.5" Spline Diameter, 10 Spline Count
SKU: 40020233
Price: 141.99 USD
Availability: InStock

HALDEX part description

Product Description

Auto Brake Adjuster Kit Truck/Trailer SABA Arm Length 6" Offset 0

Application Summary

Drive Axle Applications, standard

Features & Benefits

Covers more drum brake applications than competing adjusters in the market
With innovative self-setting flexible design that offers a free selection of control arm position and error-free installation
Made highly durable and with predictable performance
Rolled wormshaft provides added resistance against fatigue
Centralized clutch offers improved protection from moisture, dirt, and road salt
Helps prevent uneven tire and brake wear for added savings on maintenance and operating expenses
High alloy steel internal gears provide increased strength and wear resistance
Heat-treated housing minimizes internal wear and extends service life
Offers ease of installation and improved performance

Haldex S-ABA Service Kit

Improve your ride’s stopping performance with the Haldex S-ABA service kit. This kit already includes the air brake automatic slack adjuster and other components you need to service your truck’s air braking system.

Product Attributes

Anchor Bracket Style	Strap
Arm Hole Diameter	1/2 in.
Arm Length	6 in.
Body Angle	34 DD
Freight Class	70
Grease Fitting Location	180 DD
Grease Fitting Type	Straight
Location	Rear
Offset	0 in.
Pin Diameter	1/2 in.
Recommended Bracket Number	42710553
Spline Diameter	1-1/2 in.
Spline Quantity	10

Additional Information

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	8708305090
Harmonized Tariff Code (HTS)	8708305090
Remanufactured Part	N
Warranty Distance	100000
Warranty Distance UOM	MI
Warranty Special	72 MO, 1 MIL MI=Haldex ABA/SABA (409 Part Number Prefix)(1), 36 MO, Unlimited MI=Haldex ABA (NL/429 Part Number Prefix)(1). 24 MO, 200K MI=Haldex ABA(8). 24 MO, 100K MI=Haldex ABA/S-ABA(3) & Non-Haldex ABA. 12 MO, 100K MI=Haldex ABA(9). See L20221W.pdf
Warranty Time	12
Warranty Time UOM	MO
UPC	00767653311906
VMRS Code	013002035
