(888) 312-8812 Login SignupRAYBESTOS 981990 Raybestos Specialty - Street Performance Coated Brake Rotor
$5699
Limited availability at this price!
1 Day Lead Time
Get it by Wednesday, Aug 12
RAYBESTOS 981990 Part Description
Manufacturer
Product Description

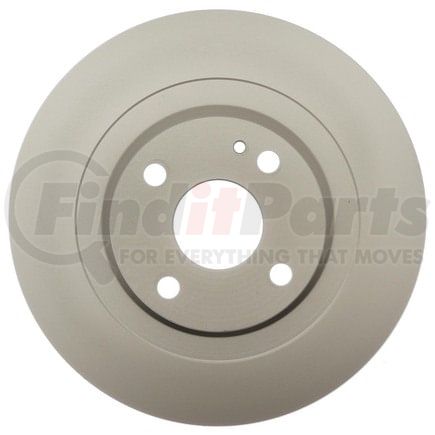

Raybestos Specialty - Street Performance Coated Brake Rotor
Application Summary
2023-2016 Mazda MX-5 Miata Rear, 2020-2017 Fiat 124 Spider Rear, 2020-2016 Mazda MX-5 Rear
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 981990 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.165 IN |
| Center Hole Diameter | 55 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.295 IN |
| Discard Thickness | 7.5 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 7.461 IN |
| Inside Diameter | 189.5 MM |
| Mounting Bolt Hole Circle Diameter | 3.937 IN |
| Mounting Bolt Hole Circle Diameter | 100 MM |
| Mounting Bolt Hole Diameter | 0.52 IN |
| Mounting Bolt Hole Diameter | 13.2 MM |
| Mounting Bolt Hole Quantity | 4 |
| Nominal Thickness | 0.374 IN |
| Nominal Thickness | 9.5 MM |
| Outside Diameter | 11.016 IN |
| Outside Diameter | 279.8 MM |
| Overall Height | 1.409 IN |
| Overall Height | 35.8 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 4 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213220445 |
RAYBESTOS 981990 Cross References
| Brand | Part Number |
|---|---|
| Advance Auto Parts | YH566232P |
| AutoZone | 77114DL |
| Brembo | 08.D224.11, 08.D224.1X |
| CENTRIC | 120.45087, 120.45087CRY, 121.45087, 126.45087SL, 126.45087SR, 127.45087L, 127.45087R, 128.45087L, 128.45087R |
| CHRYSLER | 68313167AA |
| Centric Parts | 120.45087, 120.45087CRY, 121.45087, 126.45087SL, 126.45087SR, 127.45087L, 127.45087R, 128.45087L, 128.45087R |
| Dynamic Friction Company | 604-80072 |
| FIAT | 6000612254 |
| MAGMA PRODUCTS | PSR363051 |
| MAZDA | N25126251 |
| PROMAX | 14-610023 |
| Qualis | 44826 |
| UAP | R45087 |
| WORLDPAC | 1407-566232, 1427-566194 |
| Winhere | 6612237 |
RAYBESTOS 981990 Fits Vehicles
- Fiat 124 Spider (2017-2020)
- Mazda MX-5 (2016-2022)
- Mazda MX-5 Miata (2016-2024)
