(888) 312-8812 Login SignupRAYBESTOS 582034 Raybestos Specialty - Street Performance Coated Brake Rotor
$5099
Limited availability at this price!
1 Day Lead Time
Get it by Monday, Aug 24
RAYBESTOS 582034 Part Description
Manufacturer
Product Description

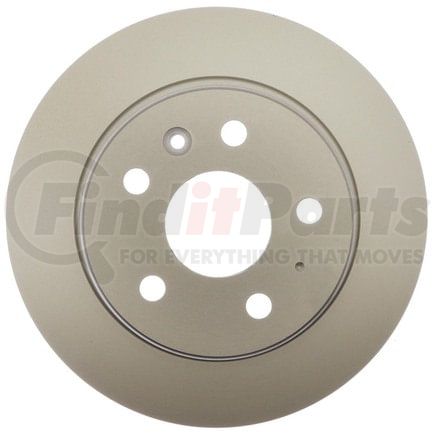

Raybestos Specialty - Street Performance Coated Brake Rotor
Application Summary
2019-2016 Chevrolet Cruze Rear, 2023-2017 Chevrolet Bolt EV Rear, 2019-2016 Chevrolet Volt Rear, 2023-2022 Chevrolet Bolt EUV Rear
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 582034 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.36 IN |
| Center Hole Diameter | 59.95 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.315 IN |
| Discard Thickness | 8 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 6.929 IN |
| Inside Diameter | 176 MM |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.134 IN |
| Mounting Bolt Hole Circle Diameter | 105 MM |
| Mounting Bolt Hole Diameter | 0.551 IN |
| Mounting Bolt Hole Diameter | 14 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.394 IN |
| Nominal Thickness | 10 MM |
| Outside Diameter | 10.394 IN |
| Outside Diameter | 264 MM |
| Overall Height | 1.732 IN |
| Overall Height | 44 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213218794 |
RAYBESTOS 582034 Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH566214P |
| AUTOPARTSOURCE | 593134 |
| AutoZone | 72073DG, 72073DL |
| Autoxtra | AX901604, AX901604P |
| BRAKEBEST | 582034, 582034R |
| BrakeBest | 582034RGS |
| CENTRIC | 120.62151, 121.62151, 126.62151SL, 126.62151SR, 127.62151L, 127.62151R, 128.62151L, 128.62151R, 320.62151 |
| Centric Parts | 120.62151, 121.62151, 126.62151SL, 126.62151SR, 127.62151L, 127.62151R, 128.62151L, 128.62151R, 320.62151 |
| Dura Corp | BR901604, BR901604-01 |
| DuraGo | BR901604, BR901604-01 |
| GM | 13509119, 13514609, 13514611, 13597355 |
| General Motors | 13509119, 13514609, 13514611, 13597355 |
| MAGMA PRODUCTS | PSR223151 |
| NEWTEK AUTOMOTIVE | R1604 |
| Newtek Automotive USA | R1604 |
| PROMAX | 14-650015 |
| Qualis | 41340 |
| TopNotch | TN582034GEO |
| Ultra Brake | 55219 |
| WORLDPAC | 1407-566214, 1427-711333 |
| Wagner Brake | BD180830E |
| Winhere | 6612140 |
RAYBESTOS 582034 Fits Vehicles
- Chevrolet Bolt EUV (2022-2023)
- Chevrolet Bolt EV (2017-2023)
- Chevrolet Cruze (2016-2019)
- Chevrolet Volt (2016-2019)
RAYBESTOS 582034 Customer Reviews
No reviews yet
Be the first to review this product!
RAYBESTOS 582034 Questions & Answers
No questions yet
Be the first to ask a question about this product!
