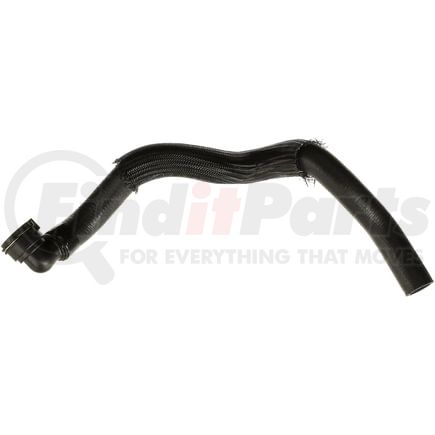

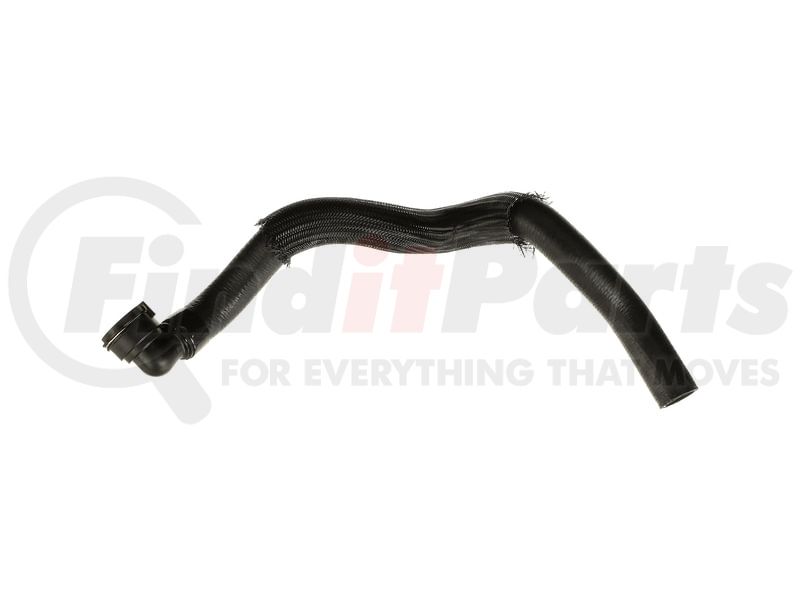

GATES 24486 Part Description
Manufacturer
Product Description
Premium Modular Coolant Hose
Application Summary
2019-13 Ford, Escape, 4-Cyl. 2.5 L, Lower
Features & Benefits
- Specifically-engineered materials resist collapse under vacuum
- Specifically-engineered materials resist collapse under vacuum
- Engineered to resist electrochemical degradation - the leading cause of hose failure
- Engineered to resist electrochemical degradation – the leading cause of hose failure
- EPDM tube; synthetic fiber knit reinforcement, heat-, ozone- and chemical coolant-resistant EPDM cover
- Manufactured with OEM-exact hose components (quick connects, branch connectors/tees, sensors, etc.)
- Meets SAE 20R3 EC Class D1 under 25mm (1 in.) ID, SAE 20R4 EC Class D1 for 25mm (1 in.) ID and over
- Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
- Note: Gates recommends replacing clamps each time a new coolant hose is installed
- Caution: Do not use for fuel or oil transfer applications
GATES 24486 Specifications
Product Attributes
| Centerline Length | 26.125 IN |
| Modular | Yes |
| Modular Components Included | Female Quick Connector |
| Branch Quantity | 0 |
| Quick Connect Fitting Quantity | 1 |
| End 1 Inside Diameter | 1.26 in |
| End 2 Inside Diameter | 1.28 in |
| Contains Spring | No |
| Material | EPDM, Plastic, Steel |
| Molded | Yes |
| Centerline Length | 664 MM |
| End 1 Inside Diameter | 32 MM |
| End 2 Inside Diameter | 33 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| Stock Status | S |
| UPC | 00770075672418 |
| VMRS Code | 042004014 |
| UNSPSC | 40142000 |
GATES 24486 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 27215X |
| Continental Belt | 67097, E91954 |
| Duralast | E91954 |
| Ford | CV61 8260 SA, CV61 8260 SB, CV61 8260 SC, CV6Z 8260 M |
| Motorcraft | KM5128 |
| NAPA Belts/Hose | 17134 |
GATES 24486 Fits Vehicles
- Ford Escape (2013-2019)
