CENTRIC 401.45003 Part Description
Manufacturer
Product Description

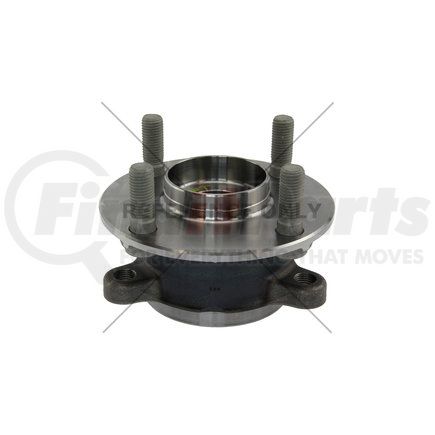

Centric Premium Hub and Bearing Assembly; With ABS Tone Ring / Encoder
Features & Benefits
- 100% O.E. Quality Components. Premium seals protect internal components. Exacting Fit and Function. Complete cataloging; featuring the latest applications and covering from 1940 to 2017
- Double Row Ball or Taper Roller Bearings include integral encoder for ABS and TCS where applicable
- Gen 1
- Gen 2
- Double Row Ball or Taper Roller Bearing Assemblies include one mounting flange - includes integral encoder for ABS, TCS where applicable
- Gen 3
- Double Row Ball or Taper Roller Bearing Assemblies include 2 mounting flanges - includes integral ABS sensor where applicable
CENTRIC 401.45003 Specifications
Product Attributes
| Mounting Hole Qty [cntrc] | 3 |
| Off-set [cntrc] In | 1.697 |
| Product Grade [cntrc] | Premium |
| Inner Mount Pilot [cntrc] Mm | 79.530 |
| Thread Pitch To Wheel Mounting [cntrc] Mm | 1.500 |
| Inner Mount Pilot [cntrc] In | 3.131 |
| Mouting Thread Size [cntrc] Mm | 12.000 |
| Mounting Thread Pitch [cntrc] Mm | 1.250 |
| Notes [cntrc] | Magnetic ABS Encoder |
| Off-set [cntrc] Mm | 43.100 |
| Bolt Circle Diameter [cntrc] Mm | 100.000 |
| Bolt Circle Diameter [cntrc] In | 3.970 |
| Spline Quantity | 26 |
| Wheel Stud Size | 12.000 MM |
| Wheel Pilot Diameter | 53.900 MM |
| Wheel Pilot Diameter | 2.122 IN |
| Brake Pilot Diameter | 55.320 MM |
| Brake Pilot Diameter | 2.178 IN |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Flange Diameter | 4.783 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8482105016 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | US |
| UPC | 00889590161977 |
CENTRIC 401.45003 Cross References
CENTRIC 401.45003 Fits Vehicles
- Toyota Yaris (2019-2020)
- Fiat 124 Spider (2018-2020)
- Toyota Yaris iA (2017-2018)
- Mazda MX-5 (2016-2021)
- Scion iA (2016)
- Mazda MX-5 Miata (2016-2021)
