CENTRIC 320.61095 Part Description
Manufacturer
Product Description

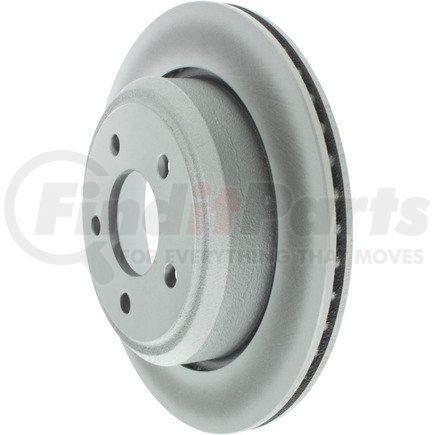

Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
CENTRIC 320.61095 Specifications
Product Attributes
| Product Grade [cntrc] | Premium |
| Weight [cntrc] Kgs | 6.760 |
| Hat Id [cntrc] In | 6.740 |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Lbs | 14.950 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Disc Mounting [cntrc] | Floating / DIH |
| Misc Holes [cntrc] | 0 |
| Hat Id [cntrc] Mm | 171.200 |
| Max Pb Drum Dia [cntrc] In | 7.276 |
| Max Pb Drum Dia [cntrc] Mm | 184.800 |
| Discard Thickness | 0.709 IN |
| Discard Thickness | 18.000 MM |
| Nominal Thickness | 19.000 MM |
| Nominal Thickness | 0.748 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 61.800 MM |
| Overall Height | 2.433 IN |
| Outside Diameter | 11.618 IN |
| Outside Diameter | 295.100 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Nominal Drum Diameter | 183.900 MM |
| Nominal Drum Diameter | 7.240 IN |
| Bearings Included | No |
| Center Hole Diameter | 2.803 IN |
| Center Hole Diameter | 71.200 MM |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 14.300 MM |
| Stud/Lug Hole Diameter | 0.563 IN |
Additional Information
| Country of Origin (Primary) | CN |
| NAFTA Preference Criterion Code | B |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 889590301748 |
CENTRIC 320.61095 Part Interchanges
| Brand | Part Number |
|---|---|
| Raybestos Brakes | 680898, 680898FZN, 680898R |
CENTRIC 320.61095 Cross References
We have 3 alternatives for the 320.61095 by CENTRIC:
