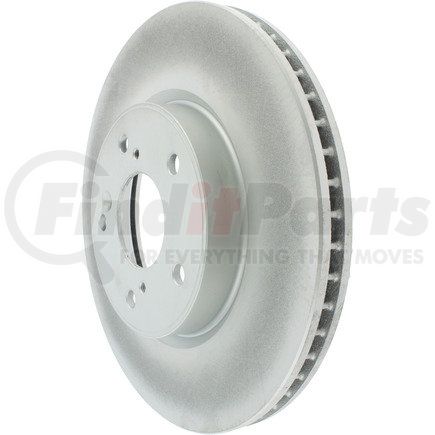

Name: Centric 320.40086 Centric GCX Rotor with Partial Coating
SKU: 32040086
Price: 78.49 USD
Availability: InStock

CENTRIC 320.40086 Part Description

Centric GCX Rotor with Partial Coating

RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs

CENTRIC 320.40086 Specifications

Hat Id [cntrc] Mm	147.600
Misc Holes [cntrc]	4
Weight [cntrc] Kgs	7.080
Hat Id [cntrc] In	5.811
California Proposition 65 Text [cntrc]	WARNING: Cancer and Reproductive Harm
Weight [cntrc] Lbs	15.600
Product Grade [cntrc]	Premium
Disc Mounting [cntrc]	Floating
Discard Thickness	23.000 MM
Discard Thickness	0.906 IN
Nominal Thickness	25.000 MM
Nominal Thickness	0.984 IN
Disc Finish	Partially Coated
Hat Finish	Coated
Overall Height	47.400 MM
Overall Height	1.866 IN
Outside Diameter	293.000 MM
Outside Diameter	11.535 IN
ABS Tone Ring Included	No
Surface Type	Smooth
Solid Or Vented Type Rotor	Vented
Bearings Included	No
Center Hole Diameter	64.200 MM
Center Hole Diameter	2.528 IN
Mounting Bolt Hole Circle Diameter	114.300 MM
Mounting Bolt Hole Circle Diameter	4.500 IN
Stud/Lug Hole Quantity	5
Stud/Lug Hole Diameter	12.700 MM
Stud/Lug Hole Diameter	0.500 IN

Harmonized Tariff Code (HTS)	8708305030
NAFTA Preference Criterion Code	B
Country of Origin (Primary)	CN
UPC	889590301007

Brand	Part Number
Raybestos Brakes	981022, 981022FZN, 981022R
N/A	HC31257X

We have 3 alternatives for the 320.40086 by CENTRIC:
