CENTRIC 320.65076 Part Description
Manufacturer
Product Description

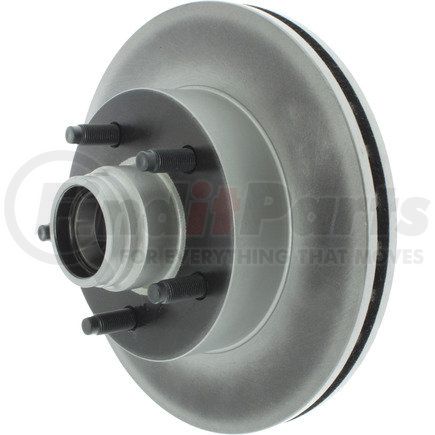

Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
CENTRIC 320.65076 Specifications
Product Attributes
| Misc Holes [cntrc] | 0 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Outer Bearing # [cntrc] | 410.91002 |
| Weight [cntrc] Lbs | 20.000 |
| Weight [cntrc] Kgs | 9.090 |
| Inner Seal # [cntrc] | 417.61003 |
| Disc Mounting [cntrc] | Hub & Rotor |
| Product Grade [cntrc] | Premium |
| Inner Bearing # [cntrc] | 410.91005 |
| Vane Style [cntrc] | Straight |
| Discard Thickness | 24.500 MM |
| Discard Thickness | 0.965 IN |
| Nominal Thickness | 26.100 MM |
| Nominal Thickness | 1.028 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Stud Thread Diameter | 0.500 IN |
| Overall Height | 108.000 MM |
| Overall Height | 4.252 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Rotor Outside Diameter | 261.000 MM |
| Rotor Outside Diameter | 10.276 in |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 20.000 IN |
| Bearings Included | No |
| Center Hole Diameter | 70.400 MM |
| Center Hole Diameter | 2.772 IN |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Stud/Lug Hole Quantity | 5 |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590302097 |
CENTRIC 320.65076 Part Interchanges
| Brand | Part Number |
|---|---|
| Raybestos Brakes | 66672FZN, 66672R |
CENTRIC 320.65076 Cross References
We have 2 alternatives for the 320.65076 by CENTRIC:
