CENTRIC 320.80013 Part Description
Manufacturer
Product Description

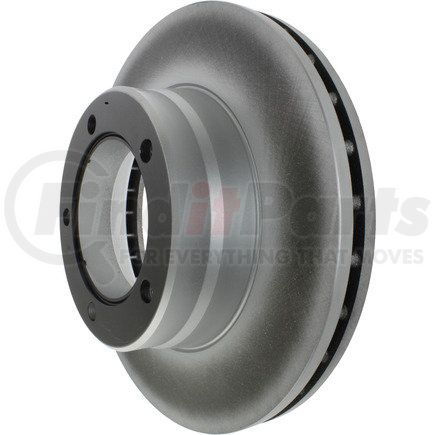

Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
CENTRIC 320.80013 Specifications
Product Attributes
| Vane Style [cntrc] | Pillar |
| Product Grade [cntrc] | Premium |
| Misc Holes [cntrc] | 0 |
| Notes [cntrc] | Hat Shaped |
| Disc Mounting [cntrc] | Behind the Hub |
| Weight [cntrc] Lbs | 44.000 |
| Weight [cntrc] Kgs | 20.000 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Discard Thickness | 36.100 MM |
| Discard Thickness | 1.421 IN |
| Nominal Thickness | 39.100 MM |
| Nominal Thickness | 1.539 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 106.500 MM |
| Overall Height | 4.193 IN |
| Outside Diameter | 381.000 MM |
| Outside Diameter | 15.000 IN |
| Mounting Bolt Hole Quantity | 5 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 131.000 MM |
| Center Hole Diameter | 5.157 IN |
| Mounting Bolt Hole Circle Diameter | 171.500 MM |
| Mounting Bolt Hole Circle Diameter | 6.752 IN |
| Mounting Bolt Hole Diameter | 16.700 MM |
| Mounting Bolt Hole Diameter | 0.657 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590297270 |
CENTRIC 320.80013 Part Interchanges
| Brand | Part Number |
|---|---|
| Raybestos Brakes | 580415, 580415FZN, 580415R |
CENTRIC 320.80013 Cross References
We have 3 alternatives for the 320.80013 by CENTRIC:
