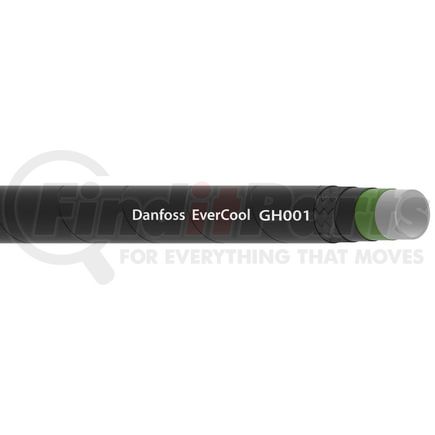

Weatherhead GH001-12WR200 - Evercool GH001 A/C and Refrigeration Hoses
- Part Number
- GH001-12WR200
- Manufacturer
- WEATHERHEAD
- Description
-
Evercool GH001 A/C and Refrigeration Hoses
details
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
WEATHERHEAD part description
| Product Name | Eaton Evercool GH001 A/C and Refrigeration Hoses |
| Certifications | SAE J2064 Type E, Class 2 |
| Vacuum rating | 28 iHg |
| Tube material | Polyamide |
| Dash size | -12 |
| Abrasion resistance | Standard |
| Working temperature - min | -40 F |
| Working pressure | 500 Psi |
| Package form | Reel |
| Outside diameter | .99 IN |
| Inside diameter | .64 IN |
| Cover material | EPDM |
| Tube wall thickness | .35 IN |
| Bend radius - min | 4 IN |
| Burst pressure | 2000 Psi |
| Working temperature - max | 284 F |
| Construction | 1 Ply Braid |
| Color | Black |
| Conductivity | Conductive |
| Factory crimp | Yes |
| Lay line style | Ink Jet |
| Reinforcement material | Fabric |
| Effusion rate | R1234yf Effusion: <1kg/m2/yr at 80°C; R134a Effusion: <1.5kg/m2/yr at 80°C |
| Length configuration | 50, 200, Reel |
| Impulse cycle life | 150000 Cycles |
| Qualified hose Fittings | E-Z Clip |
| Application | Air conditioning. |
Officially acquired by Eaton in 2002, Weatherhead® is one of the industry’s biggest suppliers of hydraulic hose, hose ends, tube fittings, couplings, assembly equipment, and support accessories. Weatherhead crafts top-products that are widely used in mining, agriculture, construction, truck, and bus applications. Eaton delivers Weatherhead thermoplastic tubing in different sizes—from 1/8 to 1 inch—designed for use in air tools, robotics, beverage dispensing as well as air and water supply. Driven by the company’s goal to offer unique solutions to a wide range of markets that enable businesses to be at the forefront of change, Weatherhead remains the truck industry’s leading source of premium-quality hoses, fittings, and adapters for your fleet’s hose and fittings needs
