HALDEX part description

Product Description

Line Haul Applications

Application Summary

Neoplan, Nova, Prevost, Setra, Van Hool, Standard Duty Friction, Developed for trucks, tractors, trailers-interstate and urban-standard line haul loads, Quiet, safe and reliable, Excellent fade resistance and recovery at low-to-moderate braking temperatures, Uncompromised stability and excellent wear at standard-to-moderate duty cycles, Rotor-friendly friction compound, Advanced mechanical retention system, FMVSS 121 and ECE R90 certified, Asbestos free

Features & Benefits

  • Contains 4 replacement pads and 2 hardware kits for servicing one axle
  • With advanced mechanical retention system for superior braking performance
  • Has groove to relieve surface tension
  • Engineered to withstand harsh operating conditions

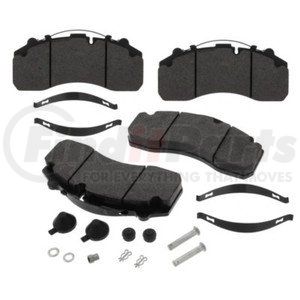

Haldex Midland Disc Brake Pad Repair Kit

Enjoy better stopping power, less dust and noise, and cost savings with the Haldex Midland disc brake pad repair kit. Made by a leading manufacturer of air brake systems and components, this kit already contains the replacement brake pads and hardware you need for a complete installation.

Product Attributes

FMSI Number 8323 D1203
Caliper model Knorr SB7/SN7
Continuous Temperature Rating 490°F
Freight Class 70
Friction Material Select XT
Intermittent Temperature Rating 1300°F
Kit Content Services one axle- contains 4 pads and 2 hardware kits
WVA Number 29105, 29087, 29106, 29108, 29109, 29163, 29179, 29201, 29202, 29275

Additional Information

Country of Origin (Primary) CN
Harmonized Tariff Code (Schedule B) 8708305040
Harmonized Tariff Code (HTS) 8708305040
Remanufactured Part N
Warranty Distance 100000
Warranty Distance UOM MI
Warranty Special 12 MO, 100,000 MI, 3600 Hours See L20221W.pdf for warranty details
Warranty Time 12
Warranty Time UOM MO
UPC 00767653373973
VMRS Code 013013003
Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.
