Dana 10049138 - Transfer Case End Yoke Kit - 1310 Series - 32 Spline
$15099
141 day lead time
limited availability at this price!
. Learn more
DANA part description
| Series: | 1310 |
| Spline Count: | 32 |
| Yoke Style: | BS |
| Hub Diameter R: | 1.875 in. |
| C/L to End Hub S: | 4.000 |
| Type: | Splined Hole |
| Outside Yoke Dimension (E): | 3.219 in. |
| Yoke Bearing Dimension (IN) D: | 1.062 |
| Major Diameter: | 1.401 |
| Involute Spline: | Y |
| Length Thru Hole Q: | 2.000 |
| Material: | Steel |
Dana Holding Corporation Spicer 1310 Series End Yoke
The Dana Holding Corporation Spicer 1310 Joint Series end yoke efficiently links the transmission to the drive axle. Installing this component addresses the signs of a failing yoke and u-joint, which include squeaking noise when moving forward or reverse, vibration when running at high speeds, and many others.
Features & Benefits
- Top-quality, drive shaft end yoke with 1310 joint series
- Durably engineered to improve a vehicle or a construction equipment’s performance and efficiency
- Integrates cutting-edge technologies to make a vehicle or machine more productive on the job site
- Meets strict quality standards for dependable functionality even under the harshest operating environment
- Backed by the company’s over 115 years of innovation and technological revolutions
Features & Benefits

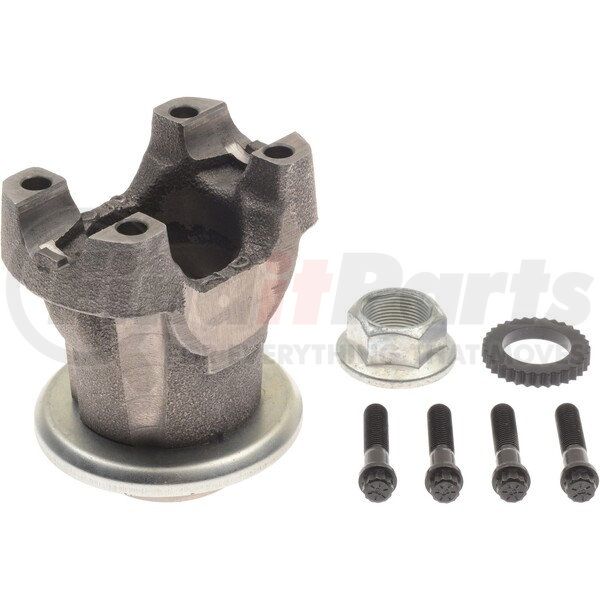

- Includes pinion nut, star washer and bolts
- 32 Spline
- Built to meet OE standards set by Dana.
- Nodular Iron
- Tested and validated to rigorous OE specifications.
- Genuine OE quality. Tested and proven.
- Latest production upgrades ensure genuine Spicer parts are as good or better than the OE parts they replace.
Product Attributes
| Series | 1310 |
| Material | Steel |
| Spline Count | 32 |
| Type | Splined Hole |
| Hub Diameter R | 1.875 IN |
| Involute Spline | Y |
| Length Thru Hole Q | 2.000 IN |
| Outside Yoke Dimension (In) E | 3.219 IN |
| Yoke Bearing Dimension (In) D | 1.062 IN |
| Yoke Style | BS |
| Major Diameter | 1.401 IN |
| C/L To End Hub S | 4.000 IN |
Additional Information
| Country of Origin (Primary) | IN |
| Harmonized Tariff Code (Schedule B) | 8708998180 |
| Harmonized Tariff Code (HTS) | 8708998180 |
| UPC | 00023913498573 |
| VMRS Code | 022003072 |
Fits Vehicles
- Jeep Wrangler JK (2018)
- Jeep Wrangler (2007-2017)
Dana Holding Corporation® is an internationally known company specializing in drivetrain and e-Propulsion systems. It conceptualizes, manufactures, and supplies energy-management and power- and conveyance solutions for the present-day and future vehicles and trucks. With its over 115 years of industry experience and innovation, and despite several turbulences the automotive and trucking industry has been through, Dana has managed to take the lead in revolutionary technological inventions. Dana Holding Corporation comprises different world-renowned brands catering to various market segments. These include SPICER Drivetrain Systems, VICTOR REINZ Sealing Products, LONG Thermal Products, BREVINI Motion Systems, GRAZIANO High-Performance Transmissions, FAIRFIELD Custom Gears and Drives, and a lot more.
