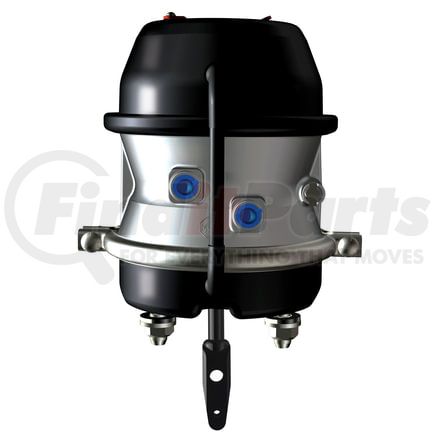

MGM Brakes 3230956 - Air Brake Chamber - Combination, 6.50" Welded Yoke
- Part Number
- 3230956
- Manufacturer
- MGM BRAKES
- Description
-
Air Brake Chamber - Combination, 6.50" Welded Yoke
details
$22549
15 day lead time
Pay over 3-12 months with
. Learn more
. Learn more
MGM BRAKES part description
Combination - with Welded Yoke - Y=6.50
Product Description
Double Diaphragm Brake Chamber
Features & Benefits
- Tamper Resistant
- Long Life Power Spring
- Center Hole Diaphragm & Shield
- Epoxy-Coated Head, NPC/Lower Push-Rod, Return Spring
- HD NPC
- Polymer Guide
- HD Reinforced Diaphragm (or Neoprene)
- Stroke Alert
- Molded Rubber Seal
- Composite Guide
Product Attributes
| Chamber Type | Double Diaphragm Brake |
| Diaphragm Diameter | Rubber IN |
| Mounting Bolt Length | 1.540 IN |
| Mounting Bolt Thread | 5/8-11 |
| Port Size | 3/8-18 NPTF |
| Spring Size | 30 |
| Service Size | 30 |
| Stroke | 3.00 IN |
| Welded Yoke | Welded Yoke |
| UNIT | Aftermarket |
Additional Information
| Country of Origin (Primary) | US |
| 21 | |
| VMRS Code | 013004000 |
