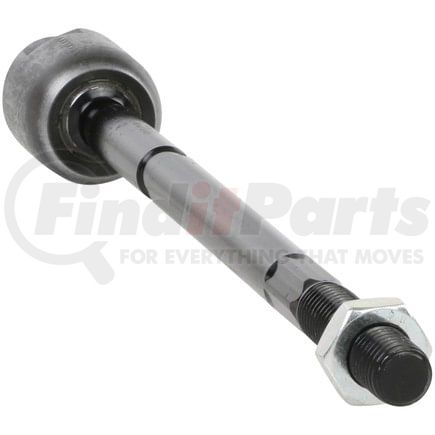

(888) 312-8812 Login SignupDELPHI TA1355 Tie Rod End
MSRP: $23.88
$2199
Save $1.89
Limited availability at this price!
In Stock
Get it by Thursday, Dec 18
DELPHI TA1355 Part Description
DELPHI TA1355 Specifications
Product Attributes
| Position(s) | Inner |
| Item Grade | Standard Replacement |
| Length | 290.00 MM |
| Color | Black and Gray |
| End 1 Gender | Male |
| End 2 Gender | Female |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | No |
| Width | 36 MM |
| Type | Straight |
| End 2 Thread Diameter | 14.00 MM |
| Height | 36.00 MM |
| Grade Type | Standard |
| Housing Material | Steel |
| Adjustable | No |
| Greaseable | No |
| Weight | 1.21 lb |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Grade | Premium |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.25 MM |
| End 1 Thread Pitch | 2 MM |
| Length - Stud Center to End | 9.654 IN |
| Length - Stud Center to End | 245.20 MM |
| Tie Rod Material | Steel |
| End 2 Threads Per Inch | 20 |
| End 1 Thread Diameter | 14.00 MM |
| Mounting Hardware Included | Yes |
| Locking Nut Included | Yes |
| End 2 Thread Diameter | 0.551 IN |
| End 1 Thread Diameter | 0.551 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604272824 |
| VMRS Code | 015004070 |
| UNSPSC | 25174205 |
DELPHI TA1355 Part Interchanges
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-4131, 101-4137 |
| MOOG Chassis Products | EV174 |
| Mevotech | MEV174 |
| Volvo | 1205659, 1205659-4 |
| MAS Industries | IS174 |
| Import Direct | AX10006 |
DELPHI TA1355 Fits Vehicles
- Volvo 265 (1976-1978)
- Volvo 264 (1976-1978)
- Volvo 262 (1976, 1978)
- Volvo 245 (1975-1981)
- Volvo 244 (1975-1981)
- Volvo 242 (1975-1981)
