DELPHI TC2686 Part Description
Manufacturer
Product Description

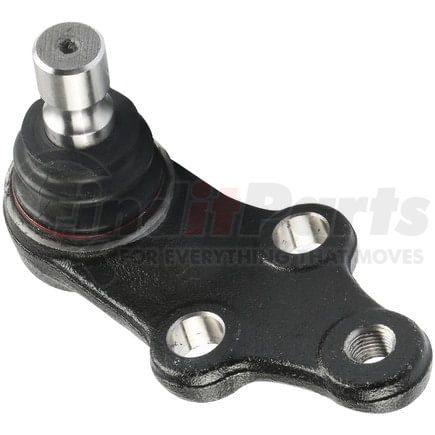

Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC2686 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040 |
| Maximum Outside Diameter | 1.102 IN |
| Maximum Outside Diameter | 28.00 MM |
| Color | Black |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard Replacement |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 65 MM |
| Type | Premium |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Mounting Bolt Length | 44.50 MM |
| Washers Included | No |
| Height | 3.110 IN |
| Nuts Included | No |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Greaseable | No |
| Stud Type | Grooved |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 40.00 MM |
| Dust Boot Material | Rubber |
| Bushing Quantity | 0 |
| Mounting Bolt Shank Diameter | 13.70 MM |
| Mounting Bolt Head Diameter | 25.60 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.25 MM |
| Mounting Bolt Thread Length | 30.00 MM |
| Mount Plate Included | No |
| Tapered Stud | No |
| Mounting Bolt Length | 1.630 IN |
| Height | 78.99 MM |
| Mounting Bolt Shank Diameter | 0.470 IN |
| Mounting Bolt Head Diameter | 1.010 IN |
| Mounting Bolt Thread Length | 1.180 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604270479 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC2686 Cross References
DELPHI TC2686 Fits Vehicles
- Kia Sportage (2011-2013)
- Hyundai Sonata (2011-2014)
- Hyundai Tucson (2010-2017)
