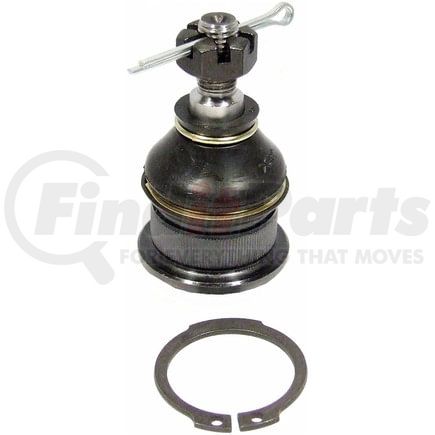

DELPHI TC1689 Ball Joint

★★★★★ (0)

$25.99

Limited availability at this price!

5 Day Lead Time

Get as soon as Friday, Dec 4
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details
Orders placed over the weekend will be processed the next business day.

DELPHI TC1689 Part Description

Manufacturer

DELPHI

Product Description

Ball Joint

Features & Benefits

  • Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
  • Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
  • Delphi machines to micron tolerances to guarantee durability and smooth joint operation
  • Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

DELPHI TC1689 Specifications

Product Attributes

Position(s)Rear Upper
Item GradeStandard Replacement
MaterialBall Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040
Maximum Outside Diameter1.555 IN
Maximum Outside Diameter39.50 MM
ColorGray
Stud Thread Diameter10 MM
Castle Nut IncludedYes
Grease Fitting IncludedNo
Suspension Grade TypeStandard Replacement
Bushings IncludedNo
Dust Boot IncludedYes
Ball Joint AssemblyYes
Width39.5 MM
Cotter Pin IncludedYes
Cotter Pin HoleYes
Mounting Hardware IncludedYes
Washers IncludedNo
Height2.835 IN
Nuts IncludedYes
AdjustableNo
GreaseableNo
Stud Thread Length0.827 IN
Stud TypeThreaded
Mounting TypePress-In
Dust Boot MaterialRubber
Mounting Bolts IncludedNo
Mount Plate IncludedNo
Tapered StudYes
Stud Taper Per Foot0.1 IN
Stud Tapered End 2 Diameter0.512 IN
Stud Tapered End 2 Diameter13 MM
Stud Tapered End 1 Diameter0.551 IN
Stud Tapered End 1 Diameter14 MM
Stud Thread Pitch1.25 MM
Length72.00 MM
Length2.830 IN
Stud Thread Diameter0.39 IN
Height72.01 MM
Stud Thread Length21.01 MM

Additional Information

Harmonized Tariff Code (Schedule B)8708807000
Harmonized Tariff Code (HTS)8708806590
Warranty SpecialLimited
Warranty Special UOMLT
Country of Origin (Primary)TR
UPC00689604276068
VMRS Code016001014
UNSPSC25174203

DELPHI TC1689 Cross References

BrandPart Number
Beck/Arnley101-4353, 101-4714, 102-4353
DORMANB9736, B9736PR
Dorman520-646, CB9926, CB9926PR
Honda52390-SE0-043, 52390-SEO-043
MAS IndustriesB9736
MOOG Chassis ProductsK9736, RK642143, RK9926
MevotechMK9736
N/AK9385, GK9736

DELPHI TC1689 Fits Vehicles

  • Honda Accord (1986-1989)
