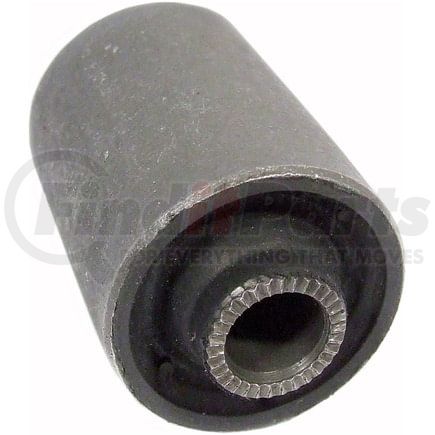

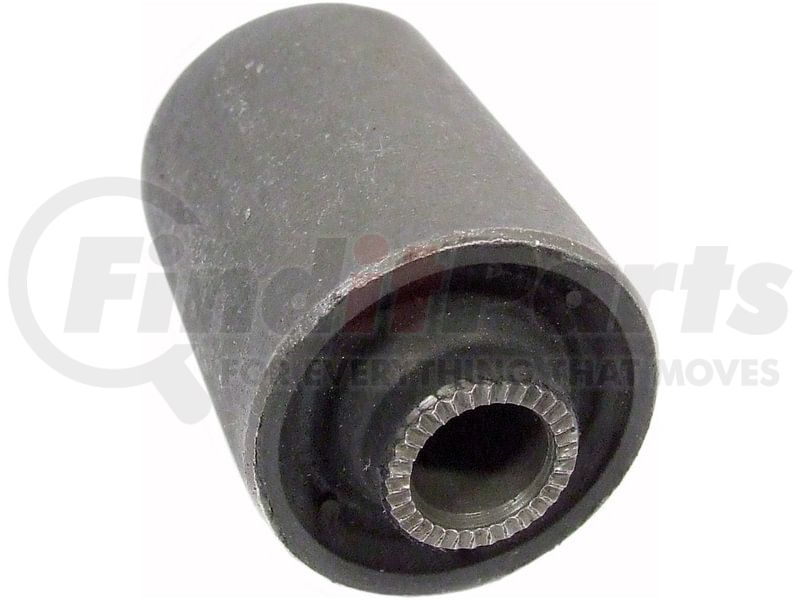

Delphi TD737W - Suspension Control Arm Bushing
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
DELPHI part description
Product Description
Suspension Control Arm Bushing
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Arm To Frame (Lower), Front Lower Inner. For the position specific to your vehicle, refer to the Applications. |
| Material | Rubber to Metal |
| Wall Thickness | 0.427 IN |
| Wall Thickness | 10.9 MM |
| Length | 2.04 IN |
| Length | 52.0 MM |
| Color | Black |
| Inside Diameter | 0.406 IN |
| Inside Diameter | 10.3 MM |
| Outside Diameter | 1.26 IN |
| Outside Diameter | 32.0 MM |
| Mounting Type | Press Fit |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4016996000 |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 4016996050 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604273760 |
| VMRS Code | 016001011 |
| UNSPSC | 25172009 |
Part Interchanges
Fits Vehicles
- Honda Prelude (1988-1991)
