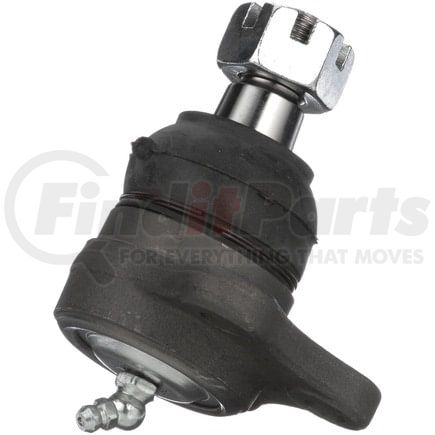

DELPHI TC2215 Part Description
Manufacturer
Product Description
Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC2215 Specifications
Product Attributes
| Position(s) | Front Lower |
| Item Grade | Standard Replacement |
| Material | Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040 |
| Color | Gray |
| Stud Thread Diameter | 16 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | Yes |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 86 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Mounting Bolt Length | 1.181 IN |
| Mounting Bolt Length | 30.00 MM |
| Washers Included | No |
| Height | 4.094 IN |
| Nuts Included | Yes |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Greaseable | Yes |
| Stud Thread Length | 0.837 IN |
| Wrench Size | 17mm |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Dust Boot Material | Rubber |
| Mounting Bolt Shank Diameter | 10.00 MM |
| Mounting Bolt Head Diameter | 0.748 IN |
| Mounting Bolt Head Diameter | 19.00 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.25 MM |
| Mounting Bolt Thread Length | 28.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Taper Per Foot | 0.125 IN |
| Stud Tapered End 2 Diameter | 0.768 IN |
| Stud Tapered End 2 Diameter | 19.5 MM |
| Stud Tapered End 1 Diameter | 0.858 IN |
| Stud Tapered End 1 Diameter | 21.8 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 98.00 MM |
| Length | 3.860 IN |
| Stud Thread Diameter | 0.63 IN |
| Height | 103.99 MM |
| Stud Thread Length | 21.26 MM |
| Mounting Bolt Shank Diameter | 0.390 IN |
| Mounting Bolt Thread Length | 1.100 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604275221 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC2215 Cross References
DELPHI TC2215 Fits Vehicles
- Plymouth Arrow Pickup (1982)
- Dodge Ram 50 (1983-1993)
- Dodge D50 (1982)
- Mitsubishi Mighty Max (1983-1996)
