Position(s)	Front Lower
Item Grade	Standard Replacement
Material	Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040
Maximum Outside Diameter	1.575 IN
Maximum Outside Diameter	40.00 MM
Color	Gray
Stud Thread Diameter	12 MM
Castle Nut Included	Yes
Grease Fitting Included	Yes
Suspension Grade Type	Standard
Bushings Included	No
Dust Boot Included	Yes
Ball Joint Assembly	Yes
Width	124 MM
Cotter Pin Included	Yes
Cotter Pin Hole	Yes
Mounting Hardware Included	Yes
Mounting Bolt Length	1.181 IN
Mounting Bolt Length	30.00 MM
Washers Included	No
Height	3.622 IN
Nuts Included	Yes
Mounting Hole Quantity	3
Adjustable	No
Greaseable	Yes
Stud Thread Length	0.945 IN
Wrench Size	19mm
Stud Type	Threaded
Mounting Type	Bolt-In
Dust Boot Material	Rubber
Mounting Bolt Shank Diameter	12.00 MM
Mounting Bolt Head Diameter	0.827 IN
Mounting Bolt Head Diameter	21.00 MM
Mounting Bolts Included	Yes
Mounting Bolt Thread Pitch	1.75 MM
Mounting Bolt Thread Length	27.50 MM
Mount Plate Included	No
Tapered Stud	Yes
Stud Taper Per Foot	0.167 IN
Stud Tapered End 2 Diameter	0.602 IN
Stud Tapered End 2 Diameter	15.3 MM
Stud Tapered End 1 Diameter	0.73 IN
Stud Tapered End 1 Diameter	18.55 MM
Stud Thread Pitch	1.75 MM
Length	65.00 MM
Length	2.560 IN
Stud Thread Diameter	0.47 IN
Height	92.00 MM
Stud Thread Length	24 MM
Mounting Bolt Shank Diameter	0.470 IN
Mounting Bolt Thread Length	1.080 IN

Harmonized Tariff Code (Schedule B)	8708807000
Country of Origin (Primary)	TR
Harmonized Tariff Code (HTS)	8708806590
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
UPC	00689604275108
VMRS Code	016001015
UNSPSC	25174203

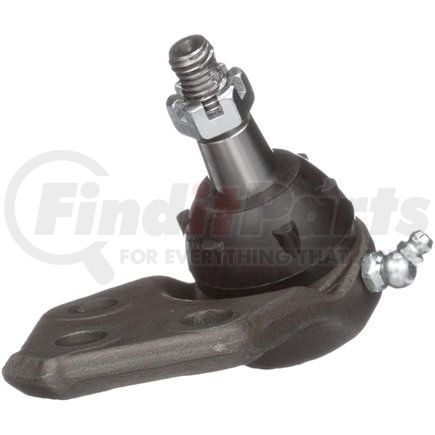

Delphi TC2201 - Ball Joint

Ball Joint
