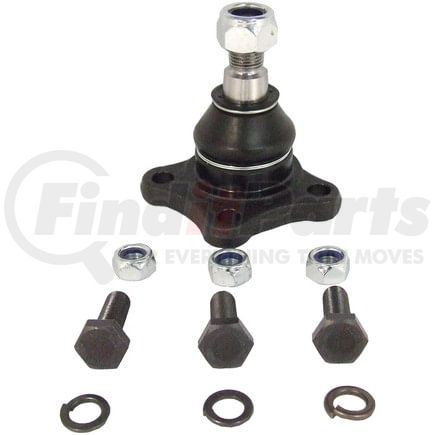

(888) 312-8812 Login SignupDELPHI TC1714 Ball Joint
Tap to view 2 more
$4799
Limited availability at this price!
5 Day Lead Time
Get it by Monday, Dec 29
DELPHI TC1714 Part Description
DELPHI TC1714 Specifications
Product Attributes
| Position(s) | Front Lower |
| Item Grade | Standard Replacement |
| Material | Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040 |
| Maximum Outside Diameter | 1.575 IN |
| Maximum Outside Diameter | 40.00 MM |
| Color | Gray |
| Stud Thread Diameter | 16 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 86 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Mounting Bolt Length | 1.181 IN |
| Mounting Bolt Length | 30.00 MM |
| Washers Included | Yes |
| Height | 3.701 IN |
| Nuts Included | Yes |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 0.886 IN |
| Wrench Size | 17mm |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Dust Boot Material | Rubber |
| Mounting Bolt Shank Diameter | 10.00 MM |
| Mounting Bolt Head Diameter | 0.748 IN |
| Mounting Bolt Head Diameter | 19.00 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.25 MM |
| Mounting Bolt Thread Length | 28.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Taper Per Foot | 0.125 IN |
| Stud Tapered End 2 Diameter | 0.774 IN |
| Stud Tapered End 2 Diameter | 19.67 MM |
| Stud Tapered End 1 Diameter | 0.878 IN |
| Stud Tapered End 1 Diameter | 22.3 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 98.00 MM |
| Length | 3.860 IN |
| Stud Thread Diameter | 0.63 IN |
| Height | 94.01 MM |
| Stud Thread Length | 22.5 MM |
| Mounting Bolt Shank Diameter | 0.390 IN |
| Mounting Bolt Thread Length | 1.100 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604276617 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC1714 Part Interchanges
| Brand | Part Number |
|---|---|
| MOOG Chassis Products | K9296 |
| Mevotech | MK9296 |
| Chrysler | MB109587, MB109588 |
| N/A | MB175544 |
DELPHI TC1714 Fits Vehicles
- Plymouth Arrow Pickup (1979-1981)
- Dodge D50 (1979-1981)
