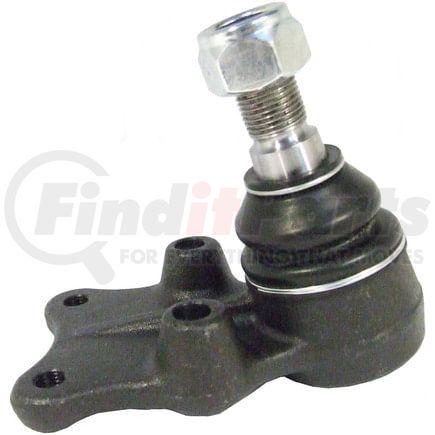

DELPHI TC1685 Ball Joint

★★★★★ (0)

$86.92

MSRP Pricing shown.

Out of Stock

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

We may have similar parts for sale. Search Alternatives >

DELPHI TC1685 Part Description

Manufacturer

DELPHI

Product Description

Ball Joint

Features & Benefits

  • Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
  • Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
  • Delphi machines to micron tolerances to guarantee durability and smooth joint operation
  • Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

DELPHI TC1685 Specifications

Product Attributes

Position(s)Front Lower
Item GradeStandard Replacement
MaterialBall Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040
Maximum Outside Diameter1.378 IN
Maximum Outside Diameter35.00 MM
ColorGray
Stud Thread Diameter18 MM
Castle Nut IncludedYes
Grease Fitting IncludedNo
Suspension Grade TypeStandard Replacement
Bushings IncludedNo
Dust Boot IncludedYes
Ball Joint AssemblyYes
Width116 MM
Cotter Pin IncludedYes
Cotter Pin HoleYes
Mounting Hardware IncludedYes
Mounting Bolt Length1.772 IN
Mounting Bolt Length45.00 MM
Washers IncludedNo
Height4.173 IN
Nuts IncludedYes
Mounting Hole Quantity4
AdjustableNo
Stud Thread Length1.22 IN
Wrench Size17mm
Stud TypeThreaded
Mounting TypeBolt-In
Dust Boot MaterialRubber
Mounting Bolt Shank Diameter10.00 MM
Mounting Bolt Head Diameter0.748 IN
Mounting Bolt Head Diameter19.00 MM
Mounting Bolts IncludedYes
Mounting Bolt Thread Pitch1.5 MM
Mounting Bolt Thread Length42.00 MM
Mount Plate IncludedNo
Tapered StudYes
Stud Taper Per Foot0.125 IN
Stud Tapered End 2 Diameter0.807 IN
Stud Tapered End 2 Diameter20.5 MM
Stud Tapered End 1 Diameter0.906 IN
Stud Tapered End 1 Diameter23 MM
Stud Thread Pitch1.5 MM
Length77.00 MM
Length3.030 IN
Stud Thread Diameter0.71 IN
Height105.99 MM
Stud Thread Length30.99 MM
Mounting Bolt Shank Diameter0.390 IN
Mounting Bolt Thread Length1.650 IN

Additional Information

Harmonized Tariff Code (Schedule B)8708807000
Country of Origin (Primary)TR
Harmonized Tariff Code (HTS)8708806590
Warranty SpecialLimited Lifetime
Warranty Special UOMLF
UPC00689604278154
VMRS Code016001015
UNSPSC25174203

DELPHI TC1685 Cross References

BrandPart Number
Beck/Arnley101-4202
DORMANB9463, B9463PR
Isuzu8-94459-464-1, 8-94459-464-2
MAS IndustriesB9463
MOOG Chassis ProductsK9463
MevotechMK9463
N/A101-4188, 8-94459-464-3, GK9463, B9463PR, K9465
TRWJBJ416

DELPHI TC1685 Fits Vehicles

  • Isuzu Pickup (1988-1995)
