DELPHI TC1671 Part Description
Manufacturer
Product Description

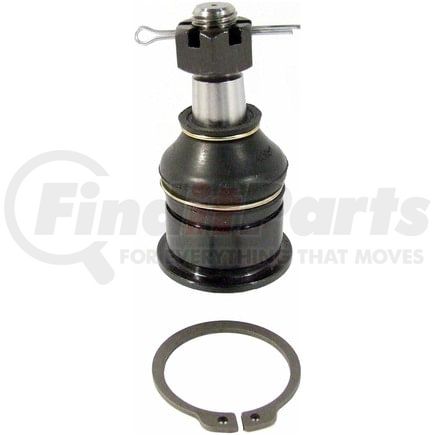

Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC1671 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040 |
| Maximum Outside Diameter | 1.811 IN |
| Maximum Outside Diameter | 46.00 MM |
| Color | Gray |
| Stud Thread Diameter | 14 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 46 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Washers Included | Yes |
| Height | 3.642 IN |
| Nuts Included | Yes |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 0.846 IN |
| Stud Type | Threaded |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Mounting Bolts Included | No |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Taper Per Foot | 0.125 IN |
| Stud Tapered End 2 Diameter | 0.61 IN |
| Stud Tapered End 2 Diameter | 15.5 MM |
| Stud Tapered End 1 Diameter | 0.717 IN |
| Stud Tapered End 1 Diameter | 18.2 MM |
| Stud Thread Pitch | 1.5 MM |
| Stud Thread Diameter | 0.55 IN |
| Height | 92.51 MM |
| Stud Thread Length | 21.49 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604276747 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC1671 Cross References
| Brand | Part Number |
|---|---|
| DORMAN | B8687, B8687XL |
| Ford | F50Y3K186A, F5OY3K185A, F5OY3K186A, F6DZ3K185A, F6DZ3K186A, F7OZ3K185AA, XF3Z3K185AA, XF3Z3K186AA |
| MAS Industries | B8687 |
| MEVOTECH | TXK8687 |
| MOOG | K8687 |
| MOOG Chassis Products | K8687 |
| Mevotech | MK8687 |
| N/A | GK8687, TXK8687, 610.6101 |
| TRW | JBJ1032 |
DELPHI TC1671 Fits Vehicles
- Mercury Sable (1996-2005)
- Lincoln Continental (1995-2002)
- Ford Taurus (1996-2007)
