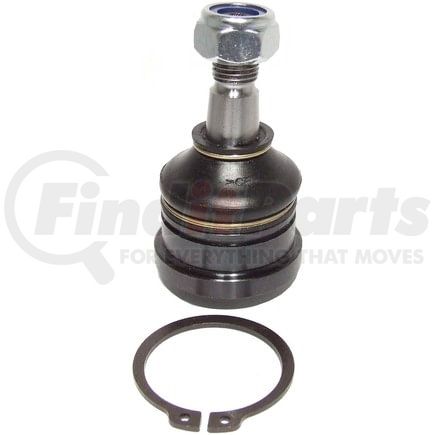

DELPHI TC1631 Ball Joint

★★★★★ (0)

MSRP: $22.72

$13.99

Save $8.73

Limited availability at this price!

In Stock

Get as soon as Monday, Nov 30
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details
Orders placed over the weekend will be processed the next business day.

DELPHI TC1631 Part Description

Manufacturer

DELPHI

Product Description

Ball Joint

Features & Benefits

  • Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
  • Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
  • Delphi machines to micron tolerances to guarantee durability and smooth joint operation
  • Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

DELPHI TC1631 Specifications

Product Attributes

Item GradeStandard Replacement
Position(s)Front Lower
MaterialBall Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040
Maximum Outside Diameter1.870 IN
Maximum Outside Diameter47.50 MM
ColorGray
Stud Thread Diameter16 MM
Grease Fitting IncludedNo
Suspension Grade TypeStandard Replacement
Bushings IncludedNo
Dust Boot IncludedYes
Ball Joint AssemblyYes
Width47.5 MM
Cotter Pin HoleNo
Mounting Hardware IncludedYes
Washers IncludedYes
Height3.465 IN
Height88.00 MM
Nuts IncludedYes
AdjustableNo
GreaseableNo
Stud Thread Length0.866 IN
Stud TypeThreaded
Mounting TypePress-In
Dust Boot MaterialRubber
Mounting Bolts IncludedNo
Mount Plate IncludedNo
Tapered StudYes
Stud Taper Per Foot0.125 IN
Stud Tapered End 2 Diameter0.581 IN
Stud Tapered End 2 Diameter14.75 MM
Stud Tapered End 1 Diameter0.654 IN
Stud Tapered End 1 Diameter16.6 MM
Stud Thread Pitch1.5 MM
Stud Thread Diameter0.63 IN
Stud Thread Length22 MM

Additional Information

Harmonized Tariff Code (Schedule B)8708807000
Country of Origin (Primary)TR
Harmonized Tariff Code (HTS)8708806590
Warranty SpecialLimited
Warranty Special UOMLT
UPC00689604278178
VMRS Code016001015
UNSPSC25174203

DELPHI TC1631 Cross References

BrandPart Number
Beck/Arnley101-3881
DORMANB9083, B9083PR
MAS IndustriesB9083
MOOG Chassis ProductsK9083, 101-3881
MevotechMK9083
N/AGK9083, B9083PR
Toyota43308-12030, 48068-19045, 48068-19135, 48068-19145, 48069-19045, 48069-19085, 48069-19115, 48069-19125
Volkswagen857407366C, 857407366E

DELPHI TC1631 Fits Vehicles

  • Toyota Carina (1972-1973)
  • Toyota Celica (1971-1985)
  • Toyota Corolla (1975-1987)
  • Toyota Corona (1979-1982)
