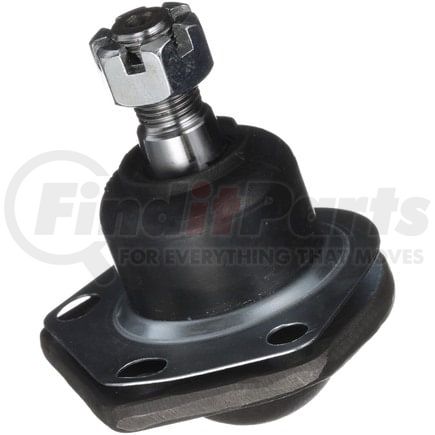

(888) 312-8812 Login SignupDELPHI TC1620 Ball Joint
Tap to view 5 more
MSRP: $49.54
$3499
Save $14.55
Limited availability at this price!
In Stock
Get it by Wednesday, Feb 25
DELPHI TC1620 Part Description
Manufacturer
Product Description
Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC1620 Specifications
Product Attributes
| Position(s) | Front Lower |
| Item Grade | Standard Replacement |
| Material | Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040 |
| Color | Gray |
| Stud Thread Diameter | 0.563 IN |
| Castle Nut Included | Yes |
| Grease Fitting Included | Yes |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 70 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Mounting Bolt Length | 0.984 IN |
| Mounting Bolt Length | 25.00 MM |
| Washers Included | No |
| Height | 4.134 IN |
| Nuts Included | Yes |
| Mounting Hole Quantity | 4 |
| Adjustable | No |
| Stud Thread Length | 0.906 IN |
| Wrench Size | 13mm |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Dust Boot Material | Rubber |
| Mounting Bolt Shank Diameter | 0.313 IN |
| Mounting Bolt Head Diameter | 0.571 IN |
| Mounting Bolt Head Diameter | 14.50 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Threads Per Inch | 24 |
| Mounting Bolt Thread Length | 23.00 MM |
| Mount Plate Included | Yes |
| Tapered Stud | Yes |
| Stud Taper Per Foot | 0.167 IN |
| Stud Tapered End 2 Diameter | 0.642 IN |
| Stud Tapered End 2 Diameter | 16.3 MM |
| Stud Tapered End 1 Diameter | 0.787 IN |
| Stud Tapered End 1 Diameter | 20 MM |
| Stud Threads Per Inch | 18 |
| Stud Thread Diameter | 14.3 MM |
| Height | 105.00 MM |
| Stud Thread Length | 23.01 MM |
| Mounting Bolt Shank Diameter | 7.95 MM |
| Mounting Bolt Thread Length | 0.910 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604275825 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC1620 Cross References
DELPHI TC1620 Fits Vehicles
- Isuzu Hombre (1998-2000)
- Oldsmobile Bravada (1991-1994, 1996-2001)
- GMC Typhoon (1992-1993)
- GMC Syclone (1991)
- GMC Sonoma (1991-2004)
- GMC S15 (1984-1990)
- GMC Jimmy (1992-2005)
- GMC S15 Jimmy (1984-1991)
- Chevrolet S10 (1984-2004)
- Chevrolet Blazer (1995-2005)
- Chevrolet S10 Blazer (1984-1994)
