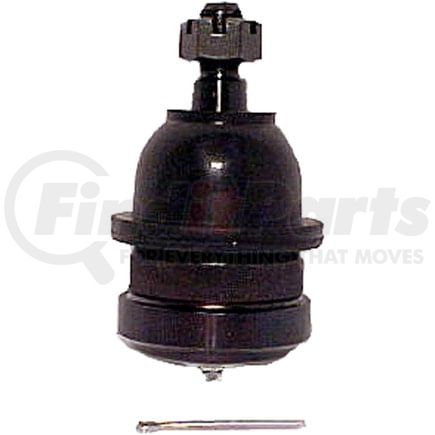

(888) 312-8812 Login SignupDELPHI TC1601 Ball Joint
Tap to view 2 more
MSRP: $35.95
$2699
Save $8.96
Limited availability at this price!
In Stock
Get it by Monday, Dec 22
DELPHI TC1601 Part Description
DELPHI TC1601 Specifications
Product Attributes
| Position(s) | Front Lower |
| Item Grade | Standard Replacement |
| Material | Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040 |
| Maximum Outside Diameter | 2.323 IN |
| Maximum Outside Diameter | 59.00 MM |
| Color | Gray |
| Stud Thread Diameter | 0.563 IN |
| Castle Nut Included | Yes |
| Grease Fitting Included | Yes |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 59 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Height | 4.646 IN |
| Nuts Included | Yes |
| Adjustable | No |
| Greaseable | Yes |
| Stud Thread Length | 0.945 IN |
| Stud Type | Threaded |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Mounting Bolts Included | No |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Taper Per Foot | 0.167 IN |
| Stud Tapered End 2 Diameter | 0.63 IN |
| Stud Tapered End 2 Diameter | 16 MM |
| Stud Tapered End 1 Diameter | 0.787 IN |
| Stud Tapered End 1 Diameter | 20 MM |
| Stud Threads Per Inch | 18 |
| Length | 118.00 MM |
| Length | 4.650 IN |
| Stud Thread Diameter | 14.3 MM |
| Height | 118.01 MM |
| Stud Thread Length | 24 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604278635 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC1601 Part Interchanges
| Brand | Part Number |
|---|---|
| MOOG Chassis Products | K6145T |
| Mevotech | MK6145T |
| General Motors | 19122185, 19416895 |
| MAS Industries | B6145 |
| TRW | JBJ1008 |
| N/A | 22156500, GK6145T, BJ92065 |
DELPHI TC1601 Fits Vehicles
- Pontiac Grand Safari (1977-1978)
- Chevrolet Bel Air (1981)
- Pontiac Ventura (1975-1977)
- Pontiac Safari (1987-1989)
- Pontiac Phoenix (1977-1979)
- Pontiac LeMans (1973-1981)
- Oldsmobile Vista Cruiser (1973-1975)
- Pontiac Catalina (1977-1981)
- Oldsmobile Omega (1975-1979)
- Oldsmobile Cutlass Cruiser (1980-1983)
- Oldsmobile Delta 88 (1977-1985)
- Oldsmobile Cutlass Supreme (1973-1988)
- Oldsmobile Cutlass Tiara (1976)
- Oldsmobile Cutlass Calais (1978-1984)
- Oldsmobile Cutlass (1973-1981, 1985-1987)
- Oldsmobile Cutlass Salon (1975-1980, 1985-1987)
- Oldsmobile 98 (1977-1984)
- GMC Sprint (1973-1977)
- Chevrolet Laguna (1973-1976)
- Chevrolet Commercial Chassis (1991-1994)
- Pontiac GTO (1973)
- Chevrolet Chevelle (1973)
- Pontiac Parisienne (1977-1986)
- Pontiac Grand LeMans (1975-1983)
- Pontiac Grand Prix (1973-1987)
- Pontiac Grand Am (1973-1975, 1978-1980)
- Pontiac Firebird (1970-2002)
- Pontiac Bonneville (1977-1986)
- Oldsmobile Custom Cruiser (1977-1992)
- GMC Sonoma (1991-2003)
- GMC S15 (1982-1990)
- GMC Jimmy (1992-2001)
- GMC S15 Jimmy (1983-1991)
- GMC Caballero (1978-1987)
- Chevrolet S10 (1982-2003)
- Chevrolet Blazer (1995-2005)
- Chevrolet S10 Blazer (1983-1994)
- Chevrolet Nova (1975-1979)
- Chevrolet Monte Carlo (1973-1988)
- Chevrolet Malibu (1973-1983)
- Chevrolet LLV (1987-1995)
- Chevrolet Impala (1977-1985, 1994-1996)
- Chevrolet El Camino (1973-1987)
- Chevrolet Caprice (1977-1996)
- Chevrolet Camaro (1970-2002)
- Cadillac Seville (1976-1979)
- Cadillac Commercial Chassis (1983-1996)
- Cadillac Brougham (1987-1992)
- Cadillac Fleetwood (1977-1986, 1993-1996)
- Cadillac DeVille (1977-1984)
- Buick Skylark (1975-1979)
- Buick Roadmaster (1991-1996)
- Buick Riviera (1977-1978)
- Buick Regal (1973-1987)
- Buick Estate Wagon (1977-1983)
- Buick LeSabre (1977-1990)
- Buick Electra (1977-1989)
- Buick Apollo (1975)
- Buick Century (1973-1981)
- Isuzu Hombre (1996-2000)
