HALDEX part description

Product Description

Type 3030, LifeSeal+, 3.0" Stroke, 22.5" to Clvs Pin, HD Housing, Welded Clevis

Application Summary

3030 LifeSeal+, Stroke 3.0", Center-line of clevis pin 2.25", Heavy duty housing, High output power spring, Welded clevis

Features & Benefits

  • Comes with truly sealed double diaphragm to effectively prevent contaminants from reaching the power spring
  • Uses standard power spring technology for unparalleled force output consistency
  • With heavy-duty housing to withstand impact and extreme conditions
  • Engineered smart and road-tested to ensure reliable, durable performance
  • Threaded with clevis

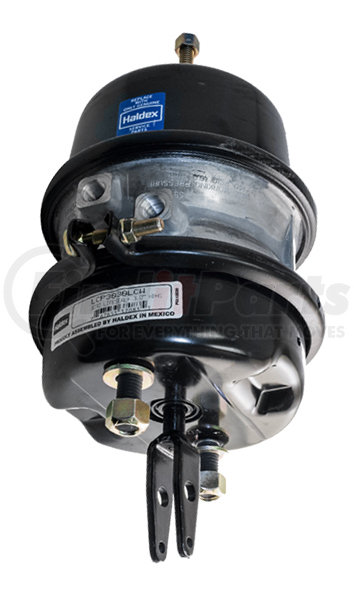

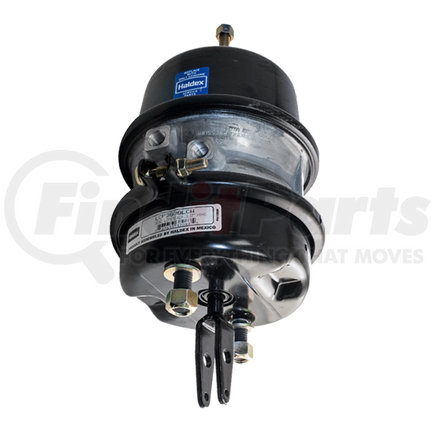

Haldex LifeSeal+ Combination Air Brake Spring Brake

Equip your vehicle with a high-quality Haldex LifeSeal+ combination air brake spring brake. This product is the only truly sealed double diaphragm spring brake specifically designed for heavy duty applications.

Product Attributes

Air Port Position
Bracket to End of Spring Housing Length 8.95 in.
Clevis Pin Length 2.25 in.
Freight Class 70
Piggyback Length 7.19 in.
Series LifeSeal+
Service Chamber Size 30/30
Service Clampband Position
Service Clampband Size 10.18 in.
Spring Housing Flange Size 8.19 in.
Stroke Length 3 in.
Stroke Type Long
Stud Distance 4.75 in.

Additional Information

Country of Origin (Primary) MX
Harmonized Tariff Code (Schedule B) 8412310080
Harmonized Tariff Code (HTS) 8412310080
Remanufactured Part N
Warranty Distance 100000
Warranty Distance UOM MI
Warranty Special See Haldex Aftermarket Product warranty Policy (L20221W).pdf
Warranty Time 12
Warranty Time UOM MO
UPC 00767653370835
VMRS Code 013004027

Part Interchanges

Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.
