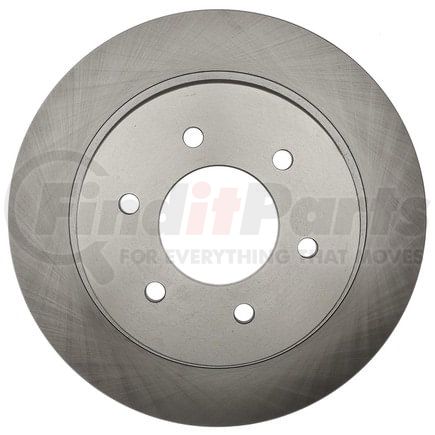

(888) 312-8812 Login SignupRAYBESTOS 982035R Raybestos R-Line Brake Rotor
$13599
Limited availability at this price!
1 Day Lead Time
Get it by Thursday, Jun 25
RAYBESTOS 982035R Part Description
Manufacturer
Product Description
Raybestos R-Line Brake Rotor
Application Summary
2023-2016 Nissan TITAN XD Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 982035R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 3.547 IN |
| Center Hole Diameter | 90.1 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.437 IN |
| Discard Thickness | 36.5 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 9.961 IN |
| Inside Diameter | 253 MM |
| Mounting Bolt Hole Circle Diameter | 5.5 IN |
| Mounting Bolt Hole Circle Diameter | 139.7 MM |
| Mounting Bolt Hole Diameter | 0.575 IN |
| Mounting Bolt Hole Diameter | 14.6 MM |
| Mounting Bolt Hole Quantity | 6 |
| Nominal Thickness | 1.496 IN |
| Nominal Thickness | 38 MM |
| Outside Diameter | 14.161 IN |
| Outside Diameter | 359.7 MM |
| Overall Height | 3.78 IN |
| Overall Height | 96 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 6 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213217681 |
RAYBESTOS 982035R Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH548503P |
| AUTOPARTSOURCE | 476281 |
| AutoZone | 76016DG, 76016DL |
| BRAKEBEST | 982035, 982035R |
| BrakeBest | 982035RGS |
| CENTRIC | 120.42130, 121.42130, 126.42130SL, 126.42130SR, 127.42130L, 127.42130R, 128.42130L, 128.42130R |
| Centric Parts | 120.42130, 121.42130, 126.42130SL, 126.42130SR, 127.42130L, 127.42130R, 128.42130L, 128.42130R |
| DATSUN/NISSAN | 40206EZ00A |
| DURA CORP | BR901472 |
| Datsun/Nissan | 402069FV0A |
| DuraGo | BR901472 |
| Dynamic Friction Company | 604-67108 |
| MAGMA PRODUCTS | PMR425126 |
| NEWTEK AUTOMOTIVE | R1472 |
| Newtek Automotive USA | R1472 |
| Nissan | 402069FV0A, 40206EZ00A |
| Qualis | 44829 |
| WORLDPAC | 1407-548503 |
| Wagner Brake | BD180681E |
| Winhere | 6622005 |
RAYBESTOS 982035R Fits Vehicles
- Nissan TITAN (2023-2024)
- Nissan TITAN XD (2016-2024)
RAYBESTOS 982035R Customer Reviews
No reviews yet
Be the first to review this product!
RAYBESTOS 982035R Questions & Answers
No questions yet
Be the first to ask a question about this product!
