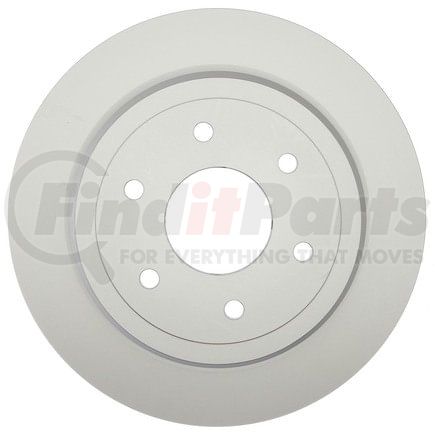

RAYBESTOS 982036 Raybestos Specialty - Truck Coated Brake Rotor

Name: Raybestos 982036 Raybestos Specialty - Truck Coated Brake Rotor
SKU: 982036
Price: 115.38 USD
Availability: OutOfStock

$115.38

MSRP Pricing shown.

Out of Stock

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

We may have similar parts for sale. Search Alternatives >

RAYBESTOS 982036 Part Description

Raybestos Specialty - Truck Coated Brake Rotor

2023-2016 Nissan TITAN XD Rear

OE Fit, Form, and Function
Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
Cooling Vanes
We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
Coating
All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
SAE Standard for Tensile Strength
Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
Turned Finish
A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box

ABS Tone Ring Included	No
Center Hole Diameter	3.236 IN
Center Hole Diameter	82.2 MM
Conventional Or Drum-In-Hat Type Rotor	Conventional
Discard Thickness	1.122 IN
Discard Thickness	28.5 MM
Harmonize Code	8708.30.5030
Inside Diameter	10.433 IN
Inside Diameter	265 MM
Mounting Bolt Hole Circle Diameter	5.5 IN
Mounting Bolt Hole Circle Diameter	139.7 MM
Mounting Bolt Hole Diameter	0.575 IN
Mounting Bolt Hole Diameter	14.6 MM
Mounting Bolt Hole Quantity	6
Nominal Thickness	1.181 IN
Nominal Thickness	30 MM
Outside Diameter	14.358 IN
Outside Diameter	364.7 MM
Overall Height	3.591 IN
Overall Height	91.2 MM
Salability Restrictions	No
Solid Or Vented Type Rotor	Vented
Stud/Lug Hole Quantity	6
Surface Type	Smooth
UNSPSC Code	25171715

Country of Origin (Primary)	CN
Canadian Harmonizing Tariff Code	8708309990
Harmonized Tariff Code (HTS)	8708305030
UPC	00887213217698
