CHELSEA part description

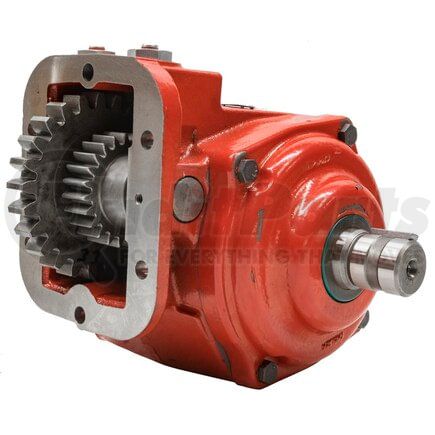

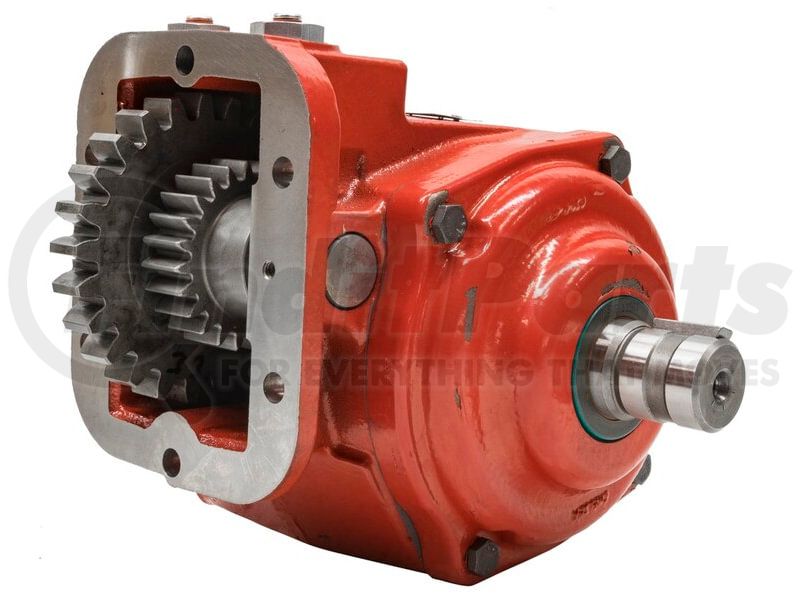

Representative Image - The product image above applies to all Chelsea Series 272 PTOs and is not part specific. Please verify the product using the part number.

Chelsea 272 Series is the most versatile medium duty hot shift PTO on the market. It is available in hydraulic or pneumatic shift with CONTINUOUS torque capabilities up to 300 lbs ft!

The 272 Series is a reinvention of our medium duty hot shift PTOs that consolidates the 230, 231, 236, 238, 270, and271 into one series. The moving parts have been upgraded to withstand 300 lbs ft intermittently or continuously. The 272 has (9) speed ratios, (18) shift options, and the most popular direct mount and driveshaft outputs. The direct mount options include Wet-Spline technology (optional) for longer PTO and pump shaft life, while the driveshaft outputs include Smart-Start for high torque start-up conditions. The 272 is the most flexible PTO on the market and it has raised the bar on medium duty hot shift PTOs that are used in the Towing and Recovery, Aerial, Construction Equipment, and Water Truck markets.


  • Aerial
  • Construction Equipment
  • Defense
  • Material Handling
  • Water Drilling
  • Other Mobile

Product Features:

  • Air or Hydraulic Shift
  • Integral Air Valve
  • Rotatable Flanges
  • Continuous-Duty Torque Rating
  • Wet-Spline Option
  • Smart Start Option for High-Torque Start-up
  • Two Year Warranty


  • Aerial
  • Construction Equipment
  • Water Trucks
  • Towing and Recovery

Performance Characteristics:

Mounting Style: 6-Bolt
Shift Type: PowerShift (Pneumatic or Hydraulic)
Standard Output Shaft Size: 1-1/4"" Round w/ 5/16"" Key
Continuous Torque Rating (Lbs-ft): 300
Continuous Torque Rating (Nm): 407
Horsepower Rating for Continuous Service
At 500 R.P.M. of Output Shaft (HP): 29
At 500 R.P.M. of Output Shaft (Kw): 21
At 1000 R.P.M. of Output Shaft (HP): 57
At 1000 R.P.M. of Output Shaft (Kw): 49
Approximate Weight: 49 lbs. [22 kg]
* Check Application Pages for Actual Torque Ratings


Mounting Type: Low-Profile with Metric Stud Kit
Gear Ratio: 28/44
Input Gear: 27-Teeth Input Gear, 28-Teeth Ratio Gear, 44-Teeth Output Gear
Lube Type: with Pressure Lube
Shift Type: 12V Electric / Hydraulic
Assembly Arrangement: Right Side: Bulge Down, Left Side: Bulge Up
Output Type: Driveline Output, Round Standard Shaft (1.25"-5/16" Key)

Chelsea®, a division of Parker, manufactures and supplies a comprehensive selection of Power Take-Off (PTO) products for the mobile vocational and truck markets. Over the years, this company has grown exponentially, thanks to its global network of distribution centers in North America, Europe, Asia, and Australia. It also attributes its continued success to the individual employee's full commitment to providing only the highest quality products to its customers worldwide. More people choose this brand because its board range of products is offered with varying torque capacities, internal speeds, and output options. So whatever your driven equipment requirement is, Parker Chelsea has got you covered.
