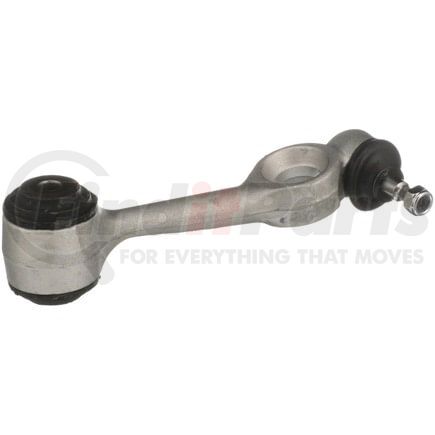

(888) 312-8812 Login SignupDELPHI TC385 Control Arm and Ball Joint Assembly
Tap to view 14 more
$5349
Limited availability at this price!
1 Day Lead Time
Get it by Tuesday, Jul 7
DELPHI TC385 Part Description
Manufacturer
Product Description
Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC385 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Upper |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Aluminum |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 1 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 2.638 IN |
| Control Arm Maximum Width | 67.00 MM |
| Control Arm Color | Gray |
| Ball Joint Thread Diameter | 10.00 MM |
| Ball Joint Stud Length | 60.00 MM |
| Control Arm Maximum Length | 10.276 IN |
| Control Arm Maximum Length | 261.00 MM |
| Mounting Hole Diameter | 12.00 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Uncoated |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 10.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Ball Joint Thread Diameter | 0.394 IN |
| Ball Joint Stud Length | 2.362 IN |
| Thread Diameter | 0.394 IN |
| Mounting Hole Diameter | 0.472 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604272503 |
| VMRS Code | 016001002 |
| UNSPSC | 25172013 |
DELPHI TC385 Cross References
DELPHI TC385 Fits Vehicles
- Mercedes-Benz 450SE (1973-1976)
- Mercedes-Benz 450SEL (1973-1980)
- Mercedes-Benz 300TD (1979-1985)
- Mercedes-Benz 300SD (1979-1980)
- Mercedes-Benz 300D (1976-1985)
- Mercedes-Benz 300CD (1978-1985)
- Mercedes-Benz 280SE (1977-1980)
- Mercedes-Benz 280S (1975-1976)
- Mercedes-Benz 280E (1977-1981)
- Mercedes-Benz 280CE (1978-1981)
- Mercedes-Benz 240D (1976-1983)
- Mercedes-Benz 230 (1976-1978)
