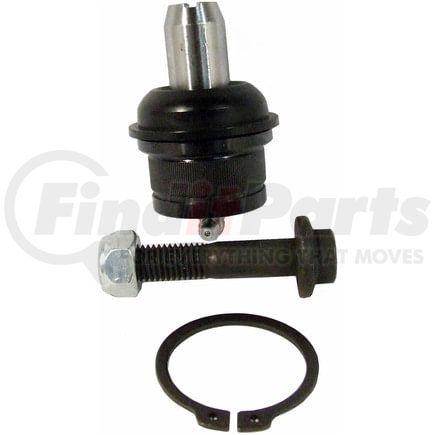

(888) 312-8812 Login SignupDELPHI TC1664 Ball Joint
Tap to view 2 more
MSRP: $37.63
$2799
Save $9.64
Limited availability at this price!
In Stock
Get it by Thursday, Jan 8
DELPHI TC1664 Part Description
DELPHI TC1664 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Upper |
| Material | Steel |
| Maximum Outside Diameter | 2.106 IN |
| Maximum Outside Diameter | 53.50 MM |
| Color | Gray |
| Castle Nut Included | No |
| Grease Fitting Included | Yes |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 53.5 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Mounting Bolt Length | 2.815 IN |
| Mounting Bolt Length | 71.50 MM |
| Washers Included | No |
| Height | 3.307 IN |
| Height | 84.00 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 0 |
| Adjustable | No |
| Greaseable | Yes |
| Wrench Size | 16mm |
| Dust Boot Material | Rubber |
| Mounting Bolt Shank Diameter | 0.472 IN |
| Mounting Bolt Shank Diameter | 12.00 MM |
| Mounting Bolt Head Diameter | 1.043 IN |
| Mounting Bolt Head Diameter | 26.50 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.75 MM |
| Mounting Bolt Thread Length | 1.299 IN |
| Mounting Bolt Thread Length | 33.00 MM |
| Mounting Bolt Thread Diameter | 12.00 MM |
| Mounting Bolt Thread Diameter | 0.470 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604276815 |
| VMRS Code | 016001014 |
| UNSPSC | 25174203 |
DELPHI TC1664 Part Interchanges
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-5198 |
| MOOG Chassis Products | K8560T |
| Mevotech | MK8560T |
| Ford | E3TZ-3049A |
| MAS Industries | B8560 |
| N/A | TXK8560T, E7TZ 3049-A, ZZL1-33-051, JBJ7025, GK8560T, F2UZ-3049A, F4UZ-3049A |
DELPHI TC1664 Fits Vehicles
- Mazda B4000 (1994-1997)
- Mazda B3000 (1994-1997)
- Mazda B2300 (1994-1997)
- Mazda Navajo (1992-1994)
- Ford Ranger (1989-1997)
- Ford Explorer (1991-1994)
- Ford Bronco II (1989-1990)
