(888) 312-8812 Login SignupDELPHI TC1629 Ball Joint
Tap to view 2 more
MSRP: $51.08
$3599
Save $15.09
Limited availability at this price!
In Stock
Get it by Monday, Feb 9

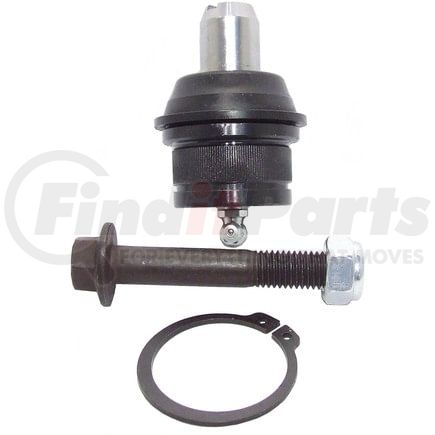

DELPHI TC1629 Part Description
Manufacturer
Product Description
Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC1629 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Upper |
| Material | Steel |
| Maximum Outside Diameter | 2.126 IN |
| Maximum Outside Diameter | 54.00 MM |
| Color | Gray |
| Stud Thread Diameter | 0.625 IN |
| Stud Thread Diameter | 15.8 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | Yes |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 54 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Mounting Bolt Length | 2.815 IN |
| Mounting Bolt Length | 71.50 MM |
| Washers Included | No |
| Height | 3.937 IN |
| Height | 100.00 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 0 |
| Adjustable | No |
| Greaseable | Yes |
| Stud Thread Length | 0.807 IN |
| Stud Thread Length | 20.5 MM |
| Wrench Size | 17mm |
| Stud Type | Threaded |
| Dust Boot Material | Rubber |
| Mounting Bolt Shank Diameter | 0.472 IN |
| Mounting Bolt Shank Diameter | 12.00 MM |
| Mounting Bolt Head Diameter | 1.024 IN |
| Mounting Bolt Head Diameter | 26.00 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.75 MM |
| Mounting Bolt Thread Length | 1.260 IN |
| Mounting Bolt Thread Length | 32.00 MM |
| Mounting Bolt Thread Diameter | 12.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.827 IN |
| Stud Tapered End 2 Diameter | 21 MM |
| Stud Tapered End 1 Diameter | 0.72 IN |
| Stud Tapered End 1 Diameter | 18.3 MM |
| Stud Threads Per Inch | 18 |
| Stud Thread Pitch | 0.7 MM |
| Length | 54.00 MM |
| Length | 2.130 IN |
| Mounting Bolt Thread Diameter | 0.470 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604277119 |
| VMRS Code | 016001014 |
| UNSPSC | 25174203 |
DELPHI TC1629 Cross References
DELPHI TC1629 Fits Vehicles
- Ford F-250 HD (1997)
- Ford F-350 (1987-1997)
- Ford F-250 (1987-1998)
- Ford F-150 (1987-1996)
