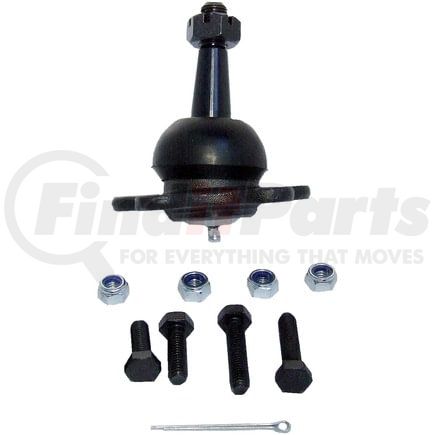

DELPHI TC1604 - Suspension Ball Joint - Front, Upper, Non-Adjustable, without Bushing, Greaseable
$2799
MSRP: $48.40
Save: $20.41
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
California Proposition 65 Warning
California Proposition 65 Warning
WARNING: This product can expose you to chemicals including Carbon black, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. (Read more)
Product Description
Ball Joint
Product Attributes
| Position(s) | Front Upper |
| Item Grade | Standard Replacement |
| Material | Steel |
| Maximum Outside Diameter | 1.878 IN |
| Maximum Outside Diameter | 47.7 MM |
| Color | Gray |
| Stud Thread Diameter | 0.5 IN |
| Stud Thread Diameter | 12.7 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | Yes |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 58.0 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| 3068 | 1.181 IN |
| Mounting Bolt Length | 30.0 MM |
| Washers Included | Yes |
| Height | 4.181 IN |
| Height | 106.2 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 4 |
| Adjustable | No |
| Greasable | Yes |
| 4966 | 0.756 IN |
| Stud Thread Length | 19.2 MM |
| 839 | 11.0mm |
| Stud Type | Threaded |
| Mounting Type | Bolt On |
| Distance Between Mounting Holes | 46.0 MM |
| Dust Boot Material | Choloroprene Rubber (CR) |
| 9202 | 0.25 IN |
| Mounting Bolt Shank Diameter | 6.35 MM |
| 9203 | 0.484 IN |
| Mounting Bolt Head Diameter | 12.3 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Threads Per Inch | 28 |
| Mounting Bolt Thread Pitch | 1.1 MM |
| 9207 | 0.906 IN |
| Mounting Bolt Thread Length | 23.0 MM |
| Mounting Bolt Thread Diameter | 28.0 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| 9212 | 0.63 IN |
| Stud Tapered End 2 Diameter | 16.0 MM |
| 9213 | 0.512 IN |
| Stud Tapered End 1 Diameter | 13.0 MM |
| Stud Threads Per Inch | 20 |
| Stud Thread Pitch | 0.78 MM |
| Length | 79.0 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604278604 |
| VMRS Code | 016001014 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- GMC Yukon (1992-2000)
- GMC Safari (1990-2005)
- GMC K2500 (1988-1995, 1997-1999)
- GMC K1500 Suburban (1992-1999)
- GMC K1500 (1988-1999)
- GMC Savana 2500 (1996-2002)
- GMC Savana 1500 (1996-2002)
- GMC C2500 (1988-1999)
- GMC C1500 Suburban (1992-1999)
- GMC C1500 (1988-1999)
- Chevrolet Tahoe (1995-2000)
- Chevrolet K2500 (1988-1995, 1997-2000)
- Chevrolet K1500 Suburban (1992-1999)
- Chevrolet K1500 (1988-1999)
- Chevrolet Express 2500 (1996-2002)
- Chevrolet Express 1500 (1996-2002)
- Chevrolet C2500 (1988-2000)
- Chevrolet C1500 Suburban (1992-1999)
- Chevrolet C1500 (1988-1999)
- Chevrolet Blazer (1992-1994)
- Chevrolet Astro (1990-2005)
- Cadillac Escalade (1999-2000)
