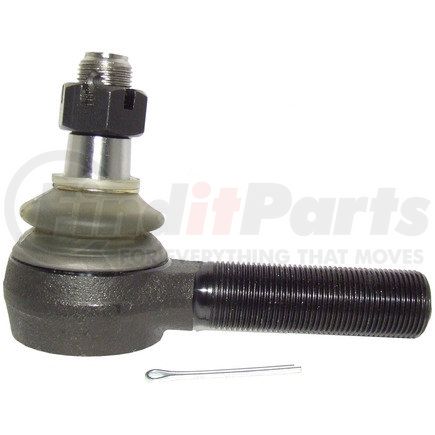

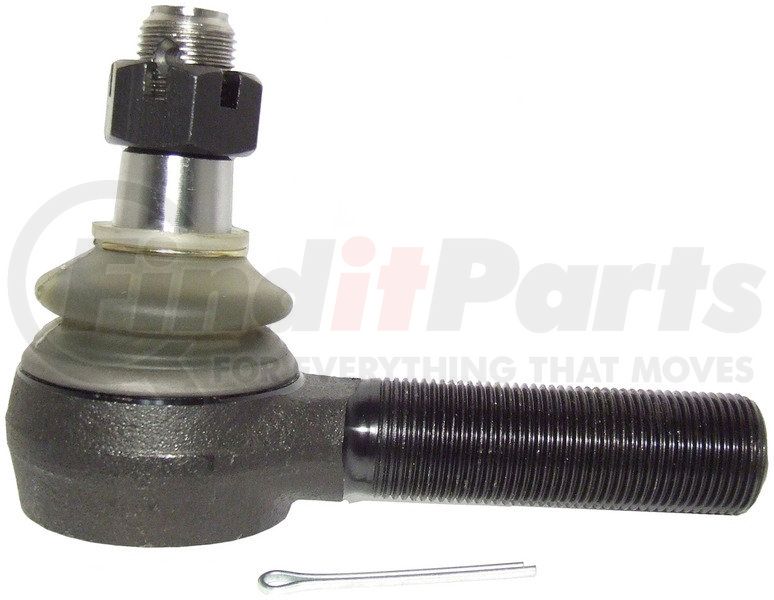

DELPHI TA2205 Tie Rod End

★★★★★ (0)

$47.49

Limited availability at this price!

5 Day Lead Time

Get as soon as Monday, Nov 30
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details
This item will ship about 5 days after the date of purchase.

DELPHI TA2205 Part Description

Manufacturer

DELPHI

Product Description

Tie Rod End

Features & Benefits

  • Delphi includes the necessary accessories for a complete job
  • Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
  • Delphi tie rods are fatigue tested to avoid failure
  • Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

DELPHI TA2205 Specifications

Product Attributes

Position(s)Left Outer
Item GradeStandard Replacement
ColorBlack
End 1 GenderMale
End 2 GenderMale
Pre-GreasedYes
Dust Boot IncludedYes
Width57.4 MM
TypeStraight
Mounting Hardware IncludedYes
End 2 Thread Diameter1.117 IN
End 2 Thread Diameter28.38 MM
Height121.50 MM
Housing MaterialSteel
Tube Diameter1.125 IN
Tube Diameter28.38 MM
AdjustableNo
Weight3.17 lb
Cone Outside Diameter27.98 MM
Bearing MaterialSteel
End 1 Thread DirectionClockwise (Right)
End 2 Thread DirectionCounterclockwise (Left)
Stud TypeThreaded
Length - Stud Center to End5.441 IN
Length - Stud Center to End138.20 MM
Dust Boot MaterialRubber
Tie Rod MaterialSteel
End 2 Threads Per Inch12
End 1 Threads Per Inch14
End 1 Thread Diameter0.875 IN
End 1 Thread Diameter22.23 MM
Shank Length27.98 MM
Stud Length27.98 MM
Grade TypeStandard Replacement
GradePremium
Shank Length1.102 IN
Stud Length1.102 IN
Cone Outside Diameter1.102 IN

Additional Information

Harmonized Tariff Code (Schedule B)8708998175
Country of Origin (Primary)TR
Harmonized Tariff Code (HTS)8708998180
Warranty SpecialLimited
Warranty Special UOMLT
UPC00689604277751
VMRS Code015004020
UNSPSC25174205

DELPHI TA2205 Cross References

BrandPart Number
Chrysler3744497
DORMANT423L, T423LPR
FordD0HZ-3A131A, D0HZ-3A131D, E3HZ-3A131A, E4HZ-3A131A, E4HZ3A131B
General Motors15514804, 15515804, 698571, A3144E525
MAS IndustriesT423L
MOOG Chassis ProductsES323L, ES423L, ES431L, K8614
MevotechMES423L
N/AGES323L, T423LPR, MES323L, 61262088
TRWJTE1716

DELPHI TA2205 Fits Vehicles

  • Autocar LLC. Xpeditor WX (2003-2006)
  • Freightliner Century Class (1996-2010)
  • Freightliner Classic XL (2001-2009)
  • Freightliner Columbia (2000-2007)
  • Freightliner FL106 (1994-2003)
  • Freightliner FL70 (1991-2005)
  • Freightliner FL80 (1991-2005)
  • Freightliner M2 106 (2004-2007)
  • Freightliner MB70 (1992-1994)
  • International 1654 (1980-1989)
  • International 1724 (1979-1985)
  • International 1754 (1979-1989)
  • International 1824 (1979-1984)
  • International 1854 (1979-1989)
  • International 1924 S (1979-1982)
  • International 1925 S (1979-1982)
  • International 1954 (1979-1989)
  • International 1955 (1979-1989)
  • International 2155 (1979-1989)
  • International 2275 (1979-1989)
  • International 2276 S (1983-1989)
  • International 2375 S (1983-1989)
  • International 2554 (1979-2002)
  • International 2574 (1979-2003)
  • International 2575 (1979-1989)
  • International 2654 (1989-2002)
  • International 2674 (1979-2003)
  • International 3700 (1990-1994)
  • International 3800 (1987, 1990-1994)
  • International 4200 (2002-2007)
  • International 4300 (2002-2012)
  • International 4600 (1990-1994)
  • International 4700 (1990-2005)
  • International 4800 (1990-2002)
  • International 4900 (1990-2002)
  • International 7100 (1990-1995)
  • International 8100 (1990-2002)
  • International 8200 (1990-1997)
  • International 8300 (1989-1994)
  • International CO9670 (1981-1988)
  • International COF9670 (1981-1988)
  • International F1924 (1979-1981)
  • International F1954 (1979-1989)
  • International F2275 (1979-1989)
  • International F2276 S (1983-1989)
  • International F2375 S (1983-1989)
  • International F2554 (1979-1989)
  • International F2574 (1979-1989)
  • International F2575 (1979-1989)
  • International F2654 (1980-1989)
  • International F2674 (1979-1989)
  • International S1624 (1981-1982)
  • International S1654 (1984-1989)
  • International S1723 (1980-1985)
  • International S1724 (1981-1984)
  • International S1753 (1984-1989)
  • International S1754 (1981-1989)
  • International S1823 (1981-1982)
  • International S1824 (1981-1985)
  • International S1853 (1981-1989)
  • International S1924 (1980-1982)
  • International S1925 (1981-1982)
  • International S1954 (1981-1990)
  • International S1955 (1981-1989)
  • International S2125 (1981)
  • International S2155 (1984-1989)
  • International S2524 (1980-1981)
  • International S2554 (1981-1989)
  • Blue Bird All American FE (1998-2017)
  • Blue Bird TC1000 (1997-2000)
  • Blue Bird TC2000 (1989-2004)
  • Ford C700 (1980-1986)
  • Ford C7000 (1980-1986)
  • Ford C800 (1980-1987)
  • Ford C8000 (1980-1988)
  • Ford C900 (1981)
  • Ford CF7000 (1986-1989)
  • Ford CF8000 (1987-1990)
  • Ford CFT8000 (1988-1990)
  • Ford CL9000 (1981-1989)
  • Ford CLT9000 (1981-1989)
  • Ford CT8000 (1981-1990)
  • Ford F-600 (1982-1991)
  • Ford F-600 LPO (1990-1991)
  • Ford F-700 (1982-1991)
  • Ford F-7000 (1984-1987)
  • Ford F-800 (1983-1991)
  • Ford F-8000 (1984-1987)
  • Ford FT800 (1983-1990)
  • Ford FT900 (1987)
  • Ford L800 (1980-1985)
  • Ford L8000 (1981-1988)
  • Ford L8000F (1987-1990)
  • Ford L900 (1981)
  • Ford L9000 (1988-1991)
  • Ford LN800 (1980-1985)
  • Ford LN8000 (1981-1990)
  • Ford LN900 (1981)
  • Ford LN9000 (1981-1991)
  • Ford LNT800 (1981-1984)
  • Ford LNT8000 (1987-1989)
  • Ford LNT900 (1981)
  • Ford LNT9000 (1981-1991)
  • Ford LS9000 (1987-1991)
  • Ford LT9000 (1981-1991)
  • Ford LTL9000 (1982-1986)
  • Ford LTS9000 (1981-1991)
  • GMC Astro (1983)
  • GMC Brigadier (1983-1987)
  • GMC General (1981-1983)
  • Hino 238 (2005-2013)
  • Hino 258 (2006-2007)
  • Hino 258LP (2006-2010)
  • Hino 268 (2005-2013)
  • Hino 268A (2008-2013)
  • Hino 338 (2005-2013)
  • Sterling Truck Acterra 5500 (2001-2004)
  • Sterling Truck Acterra 6500 (2001-2004)
  • Sterling Truck Acterra 7500 (2001-2004)
  • Sterling Truck SC7000 Cargo (1999-2002)
  • Thomas Saf-T-Liner (1991-2012)
