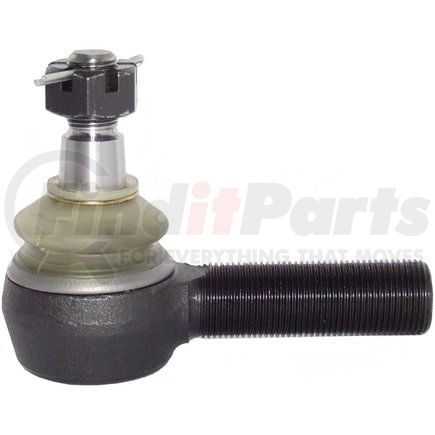

Name: Delphi TA2200 Tie Rod End
SKU: ta2200
Price: 47.99 USD
Availability: InStock

DELPHI part description

California Proposition 65 Warning

WARNING: This product can expose you to chemicals including Carbon black, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. (Read more)

Product Description

Tie Rod End

Product Attributes

Position(s)	Left
Item Grade	Standard Replacement
Color	Gray
End 1 Gender	Male
End 2 Gender	Male
Pre-Greased	Yes
Dust Boot Included	Yes
Width	69.0 MM
Type	Straight
Mounting Hardware Included	Yes
End 2 Thread Diameter	1.125 IN
End 2 Thread Diameter	28.38 MM
Height	120.7 MM
Housing Material	Steel
36	1.125 IN
Tube Diameter	28.38 MM
Adjustable	No
Weight	3.85 lb
Cone Outside Diameter	26.3 MM
Bearing Material	Steel
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Counterclockwise (Left)
Stud Type	Threaded
Length Stud Center to End	4.921 IN
Length Stud Center to End	125.0 MM
Dust Boot Material	Choloroprene Rubber (CR)
Tie Rod Material	Steel
End 2 Threads Per Inch	12
End 1 Threads Per Inch	16
End 1 Thread Diameter	0.75 IN
End 1 Thread Diameter	19.05 MM

Additional Information

Harmonized Tariff Code (HTS)	8708998180
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
Harmonized Tariff Code (Schedule B)	8708998175
Country of Origin (Primary)	TR
UPC	00689604275580
VMRS Code	015004020
UNSPSC	25174205
