DELPHI TC832 - Ball Joint
$3199
MSRP: $38.72
Save: $6.73
In stock
limited availability at this price!
Pay over 3-12 months with . Learn more
DELPHI part description
California Proposition 65 Warning
WARNING: This product can expose you to chemicals including Carbon black, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. (Read more)
Product Description

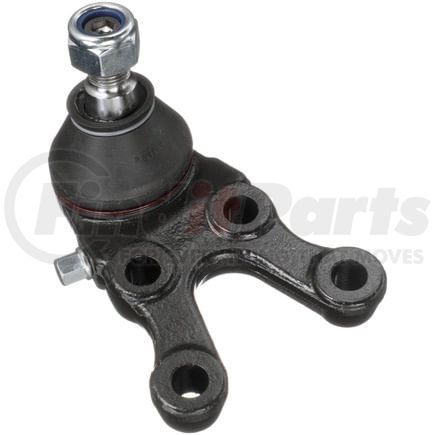

Ball Joint
Product Attributes
Item Grade | Standard Replacement |
Position(s) | Front Left Lower |
Material | Steel |
Maximum Outside Diameter | 2.224 IN |
Maximum Outside Diameter | 56.5 MM |
Color | Black |
Stud Thread Diameter | 0.63 IN |
Stud Thread Diameter | 16.0 MM |
Castle Nut Included | No |
Grease Fitting Included | No |
Suspension Grade Type | Standard |
Bushings Included | No |
Dust Boot Included | Yes |
Ball Joint Assembly | Yes |
Width | 98.5 MM |
Cotter Pin Included | No |
Cotter Pin Hole | No |
Mounting Hardware Included | Yes |
3068 | 1.89 IN |
Mounting Bolt Length | 48.0 MM |
Washers Included | Yes |
Height | 3.72 IN |
Height | 94.5 MM |
Nuts Included | Yes |
Mounting Hole Quantity | 4 |
Adjustable | No |
Greasable | No |
4966 | 0.787 IN |
Stud Thread Length | 20.0 MM |
839 | 19.0mm |
Stud Type | Threaded |
Mounting Type | Bolt On |
Distance Between Mounting Holes | 46.0 MM |
Dust Boot Material | Choloroprene Rubber (CR) |
9202 | 0.472 IN |
Mounting Bolt Shank Diameter | 12.0 MM |
9203 | 0.866 IN |
Mounting Bolt Head Diameter | 22.0 MM |
Mounting Bolts Included | Yes |
Mounting Bolt Thread Pitch | 1.25 MM |
9207 | 1.181 IN |
Mounting Bolt Thread Length | 30.0 MM |
Mounting Bolt Thread Diameter | 12.0 MM |
Mount Plate Included | No |
Tapered Stud | Yes |
9212 | 0.87 IN |
Stud Tapered End 2 Diameter | 22.1 MM |
9213 | 0.766 IN |
Stud Tapered End 1 Diameter | 19.45 MM |
Stud Thread Pitch | 1.5 MM |
Length | 137.0 MM |
Additional Information
Harmonized Tariff Code (Schedule B) | 8708807000 |
Harmonized Tariff Code (HTS) | 8708806590 |
Warranty Special | Limited Lifetime |
Warranty Special UOM | LF |
Country of Origin (Primary) | TR |
UPC | 00689604260302 |
VMRS Code | 016001015 |
UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Mitsubishi Montero Sport (1997-2004)
- Mitsubishi Montero (1992-2000)
