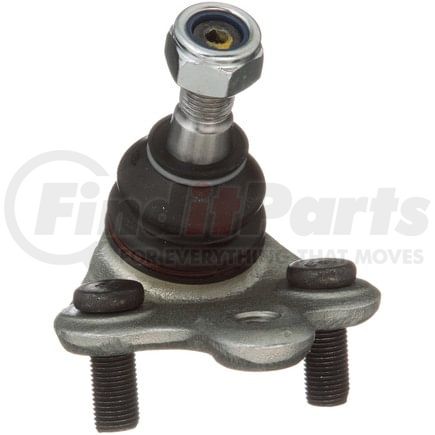

(888) 312-8812 Login SignupDELPHI TC747 Ball Joint
Tap to view 15 more
MSRP: $29.49
$2299
Save $6.50
Limited availability at this price!
In Stock
Get it by Thursday, Feb 12
DELPHI TC747 Part Description
Manufacturer
Product Description
Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC747 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Steel |
| Maximum Outside Diameter | 3.504 IN |
| Maximum Outside Diameter | 89.00 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 89 MM |
| Type | Premium |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Mounting Bolt Length | 1.476 IN |
| Mounting Bolt Length | 37.50 MM |
| Washers Included | Yes |
| Height | 3.386 IN |
| Height | 86.00 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 0.874 IN |
| Stud Thread Length | 22.2 MM |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 55.90 MM |
| Dust Boot Material | Rubber |
| Bushing Quantity | 0 |
| Mounting Bolt Shank Diameter | 0.492 IN |
| Mounting Bolt Shank Diameter | 12.50 MM |
| Mounting Bolt Head Diameter | 0.862 IN |
| Mounting Bolt Head Diameter | 21.90 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.25 MM |
| Mounting Bolt Thread Length | 1.181 IN |
| Mounting Bolt Thread Length | 30.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.594 IN |
| Stud Tapered End 2 Diameter | 15.1 MM |
| Stud Tapered End 1 Diameter | 0.713 IN |
| Stud Tapered End 1 Diameter | 18.1 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 97.00 MM |
| Length | 3.820 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604260043 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC747 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-4306, 101-4428, 101-4715 |
| CORTECO | 49399044 |
| DORMAN | B9742, B9742XL, 536-992 |
| Deeza | TY-F213 |
| General Motors | 43330-29265 |
| Import Direct | BJ07031 |
| MAS Industries | B9742, B9742XL, B9756 |
| MOOG Chassis Products | K9742, K9756 |
| Mcquay-Norris | FA2088 |
| Mevotech | MK9742, MK9756, MS20111, MS20112 |
| N/A | 43330-29375, 43330-29315, GK9742, 94856090, 611.44014 |
| Raybestos Chassis | 505-1207 |
| TRW | JBJ459, JBJ682 |
| Toyota | 43330-19095, 43330-29265, 43330-29315, 43330-29325, 43330-29375, 45503-29375, 83330-29265 |
DELPHI TC747 Fits Vehicles
- Chevrolet Prizm (1998-2002)
- Toyota Corolla (1993-1995)
- Toyota Celica (1994-1999)
- Geo Prizm (1993-1997)
