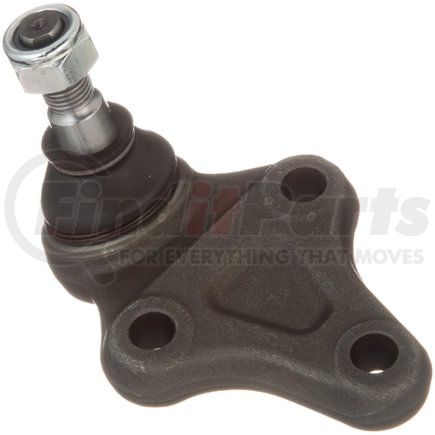

DELPHI TC630 Part Description
Manufacturer
Product Description
Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC630 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Steel |
| Maximum Outside Diameter | 1.984 IN |
| Maximum Outside Diameter | 50.40 MM |
| Color | Gray |
| Stud Thread Diameter | 0.551 IN |
| Stud Thread Diameter | 14 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 90 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Height | 3.780 IN |
| Height | 96.00 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Stud Thread Length | 0.906 IN |
| Stud Thread Length | 23 MM |
| Wrench Size | 22mm |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 50.00 MM |
| Dust Boot Material | Rubber |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.709 IN |
| Stud Tapered End 2 Diameter | 18 MM |
| Stud Tapered End 1 Diameter | 0.63 IN |
| Stud Tapered End 1 Diameter | 16 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 140.00 MM |
| Length | 5.510 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604259887 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC630 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-4338 |
| CORTECO | 49399167 |
| DORMAN | B9739, B9739PR, 536-986 |
| General Motors | 45700-60A00, 45700-85C00 |
| Import Direct | BJ07030 |
| MAS Industries | B9739 |
| MOOG | K9739 |
| MOOG Chassis Products | K9739 |
| Mevotech | MK9739, MS9800, MS9801 |
| N/A | 0915914029000, 4570060A00000, 4570085C00000, GK9739 |
| QUICK STEER | K9739 |
| Suzuki | 45700-60A00, 45700-85C00 |
| TRW | JBJ317 |
DELPHI TC630 Fits Vehicles
- GMC Tracker (1989-1991)
- Geo Tracker (1989-1997)
- Chevrolet Tracker (1989-1991, 1998)
- Suzuki X-90 (1996-1998)
- Suzuki Vitara (1999-2002)
- Suzuki Sidekick (1989-1998)
