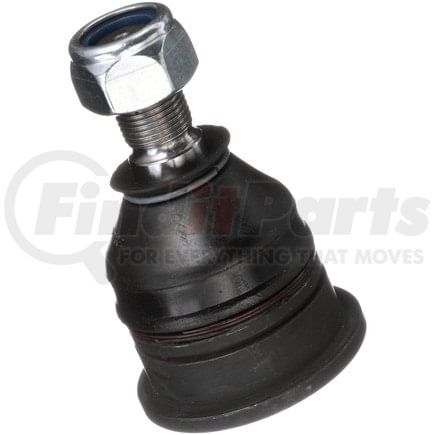

DELPHI TC598 Part Description
Manufacturer
Product Description
Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC598 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Steel |
| Maximum Outside Diameter | 2.421 IN |
| Maximum Outside Diameter | 61.50 MM |
| Color | Gray |
| Stud Thread Diameter | 0.709 IN |
| Stud Thread Diameter | 18 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 61.5 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Height | 3.917 IN |
| Height | 99.50 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 0 |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 1.161 IN |
| Stud Thread Length | 29.5 MM |
| Wrench Size | 27mm |
| Stud Type | Threaded |
| Dust Boot Material | Rubber |
| Mounting Bolts Included | No |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.866 IN |
| Stud Tapered End 2 Diameter | 22 MM |
| Stud Tapered End 1 Diameter | 0.776 IN |
| Stud Tapered End 1 Diameter | 19.7 MM |
| Stud Thread Pitch | 1.5 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604259870 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC598 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-4169 |
| CORTECO | 49395655 |
| DORMAN | B9609, B9609XL, 536-964 |
| Datsun/Nissan | 4016--01G90, 40160-01G00, 40160-01G25, 40160-01G26, 40160-01G50, 40160-01G90, 40160-01N25, 40160-27N25, 40160-2S485, 40160-55G90 |
| Deeza | NI-F604 |
| Import Direct | BJ06042 |
| MAS Industries | B9609 |
| MOOG Chassis Products | K9609 |
| Mcquay-Norris | FA1750 |
| Mevotech | MK9609, MS9662, MS9663 |
| N/A | 40110EA00A, GK9609, 610.42019 |
| Raybestos Chassis | 505-1168 |
| TRW | JBJ327 |
DELPHI TC598 Fits Vehicles
- Nissan Pickup (1995-1997)
- Nissan D21 (1986-1994)
