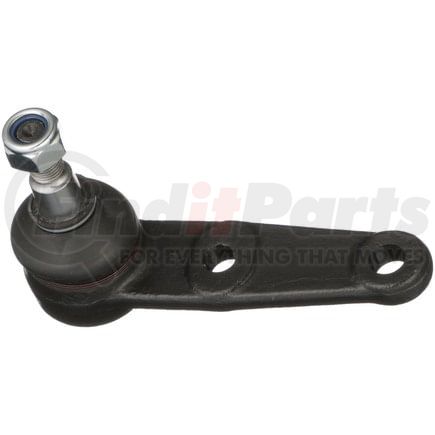

DELPHI TC582 Part Description
Manufacturer
Product Description
Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC582 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Steel |
| Maximum Outside Diameter | 1.764 IN |
| Maximum Outside Diameter | 44.80 MM |
| Color | Black |
| Stud Thread Diameter | 0.472 IN |
| Stud Thread Diameter | 12 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 44.8 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Height | 3.366 IN |
| Height | 85.50 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 2 |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 0.717 IN |
| Stud Thread Length | 18.2 MM |
| Wrench Size | 19mm |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 58.00 MM |
| Dust Boot Material | Rubber |
| Mounting Bolts Included | No |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.677 IN |
| Stud Tapered End 2 Diameter | 17.2 MM |
| Stud Tapered End 1 Diameter | 0.591 IN |
| Stud Tapered End 1 Diameter | 15 MM |
| Stud Thread Pitch | 1.25 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604259818 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC582 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-4112 |
| CORTECO | 49395819 |
| DORMAN | B9635, B9635PR, 536-969 |
| Hyundai | 54530-24000, 54530-24A00, 54530-28000, 54530-28A00 |
| Import Direct | BJ07064 |
| MAS Industries | B9453, B9635 |
| MOOG | K9453 |
| MOOG Chassis Products | K9453, K9635 |
| Mcquay-Norris | FA2055 |
| Mevotech | MK9453, MK9635, MS20119, MS20120 |
| N/A | 5453028020, GK9453 |
| QUICK STEER | K9453 |
| Raybestos Chassis | 505-1171 |
| TRW | JBJ374 |
DELPHI TC582 Fits Vehicles
- Mitsubishi Precis (1990-1994)
- Hyundai Excel (1990-1994)
- Hyundai Elantra (1992-1995)
- Hyundai Scoupe (1991-1995)
