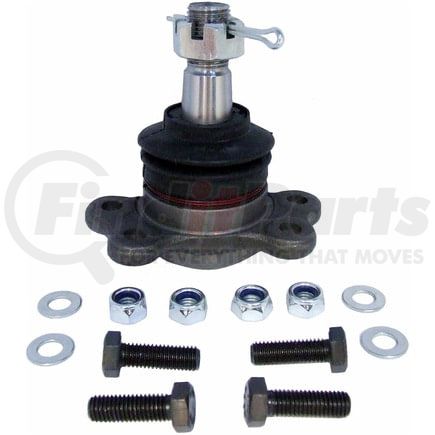

DELPHI TC549 Part Description
Manufacturer
Product Description
Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC549 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Upper |
| Material | Steel |
| Maximum Outside Diameter | 2.382 IN |
| Maximum Outside Diameter | 60.50 MM |
| Color | Black |
| Stud Thread Diameter | 0.551 IN |
| Stud Thread Diameter | 14 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 60.5 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | No |
| Mounting Bolt Length | 1.378 IN |
| Mounting Bolt Length | 35.00 MM |
| Washers Included | Yes |
| Height | 3.937 IN |
| Height | 100.00 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 4 |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 1.004 IN |
| Stud Thread Length | 25.5 MM |
| Wrench Size | 13mm |
| Stud Type | Threaded |
| Distance Between Mounting Holes | 74.00 MM |
| Dust Boot Material | Rubber |
| Mounting Bolt Shank Diameter | 0.315 IN |
| Mounting Bolt Shank Diameter | 8.00 MM |
| Mounting Bolt Head Diameter | 0.571 IN |
| Mounting Bolt Head Diameter | 14.50 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.25 MM |
| Mounting Bolt Thread Length | 1.378 IN |
| Mounting Bolt Thread Length | 35.00 MM |
| Mounting Bolt Thread Diameter | 8.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.791 IN |
| Stud Tapered End 2 Diameter | 20.1 MM |
| Stud Tapered End 1 Diameter | 0.693 IN |
| Stud Tapered End 1 Diameter | 17.6 MM |
| Stud Thread Pitch | 1.5 MM |
| Mounting Bolt Thread Diameter | 0.310 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604259757 |
| VMRS Code | 016001014 |
| UNSPSC | 25174203 |
DELPHI TC549 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-3502, 101-4089, 101-4189 |
| CORTECO | 49400858, 49400773 |
| DORMAN | B9042, B9042PR, 536-696 |
| Dorman | B9452, B9452PR |
| General Motors | 310821, 8-94243-234-0, 94459453, 94472255 |
| Import Direct | BJ07063 |
| Isuzu | 8-94224550-1, 8-94224550-2, 8-94224550-3, 8-94224550-4, 8-94224550-5, 8-94243-234-0, 8-94459-453-4, 8-94459453-2, 8-94459453-3, 8-94472255-0, 8-94472255-2 |
| MAS Industries | B9042, B9452 |
| MOOG Chassis Products | K9042, K9452 |
| Mevotech | MK9042, MK9452 |
| N/A | GS70802, GK9042 |
| Opel | 310821, 310828 |
| Raybestos Chassis | 500-1050 |
| TRW | JBJ275, JBJ406 |
| VAICO | V400509 |
| Vauxhall | 310821, 94459453, 94472255 |
DELPHI TC549 Fits Vehicles
- Chevrolet LUV (1981-1982, 1997-2005)
- Isuzu Trooper (1984-1991)
- Isuzu Rodeo (1995)
- Isuzu Pickup (1981-1987, 1995)
