DELPHI TC541 Part Description
Manufacturer
Product Description

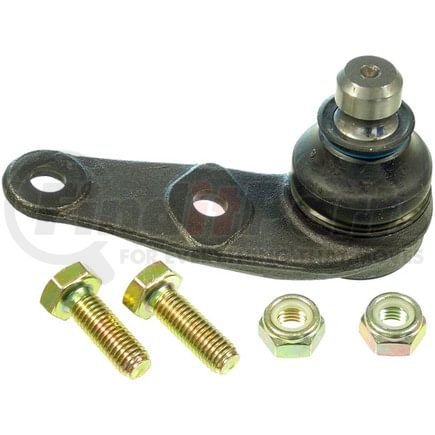

Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC541 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Lower |
| Material | Steel |
| Maximum Outside Diameter | 1.693 IN |
| Maximum Outside Diameter | 43.00 MM |
| Color | Gray |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 53 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Mounting Bolt Length | 1.437 IN |
| Mounting Bolt Length | 36.50 MM |
| Washers Included | No |
| Height | 2.520 IN |
| Height | 64.00 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 2 |
| Adjustable | No |
| Greaseable | No |
| Wrench Size | 17mm |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 48.00 MM |
| Dust Boot Material | Rubber |
| Mounting Bolt Shank Diameter | 0.394 IN |
| Mounting Bolt Shank Diameter | 10.00 MM |
| Mounting Bolt Head Diameter | 0.591 IN |
| Mounting Bolt Head Diameter | 15.00 MM |
| Mounting Bolts Included | No |
| Mounting Bolt Thread Pitch | 1.25 MM |
| Mounting Bolt Thread Length | 1.181 IN |
| Mounting Bolt Thread Length | 30.00 MM |
| Mounting Bolt Thread Diameter | 10.00 MM |
| Mount Plate Included | No |
| Tapered Stud | No |
| Length | 133.00 MM |
| Length | 5.240 IN |
| Mounting Bolt Thread Diameter | 0.390 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604259733 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC541 Cross References
DELPHI TC541 Fits Vehicles
- Audi 90 Quattro (1989-1990)
- Audi 80 Quattro (1989-1990)
- Audi 90 (1989-1991)
- Audi 80 (1989-1991)
