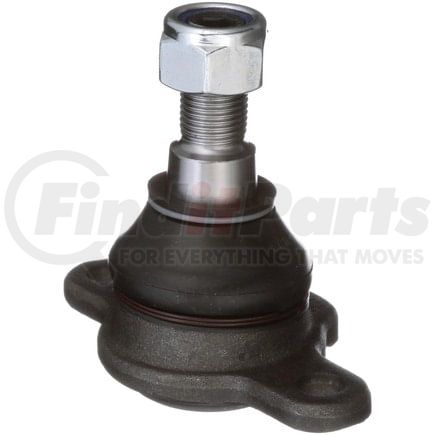

DELPHI TC527 Part Description
Manufacturer
Product Description
Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC527 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Steel |
| Maximum Outside Diameter | 4.055 IN |
| Maximum Outside Diameter | 103.00 MM |
| Color | Gray |
| Stud Thread Diameter | 0.63 IN |
| Stud Thread Diameter | 16 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 90 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Height | 2.362 IN |
| Height | 60.00 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 2 |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 1.142 IN |
| Stud Thread Length | 29 MM |
| Wrench Size | 24mm |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Dust Boot Material | Rubber |
| Mounting Bolts Included | No |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.886 IN |
| Stud Tapered End 2 Diameter | 22.5 MM |
| Stud Tapered End 1 Diameter | 0.799 IN |
| Stud Tapered End 1 Diameter | 20.3 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 4.010 IN |
| Length | 103.00 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604259696 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC527 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-4605 |
| CORTECO | 49398771 |
| DORMAN | B9914, B9914PR, 537-028 |
| Import Direct | BJ07068 |
| MAS Industries | B9914 |
| MEYLE | 1160107193, 1160107193/HD |
| MOOG Chassis Products | K9914 |
| Mcquay-Norris | FA2142 |
| Mevotech | MK9914 |
| N/A | GK9914 |
| Raybestos Chassis | 505-1251 |
| TRW | JBJ245 |
| Volkswagen | 701 407 361, 701 407 361 B, 701 407361 C |
DELPHI TC527 Fits Vehicles
- Volkswagen Transporter (1992-1994)
- Volkswagen EuroVan (1993-1995)
